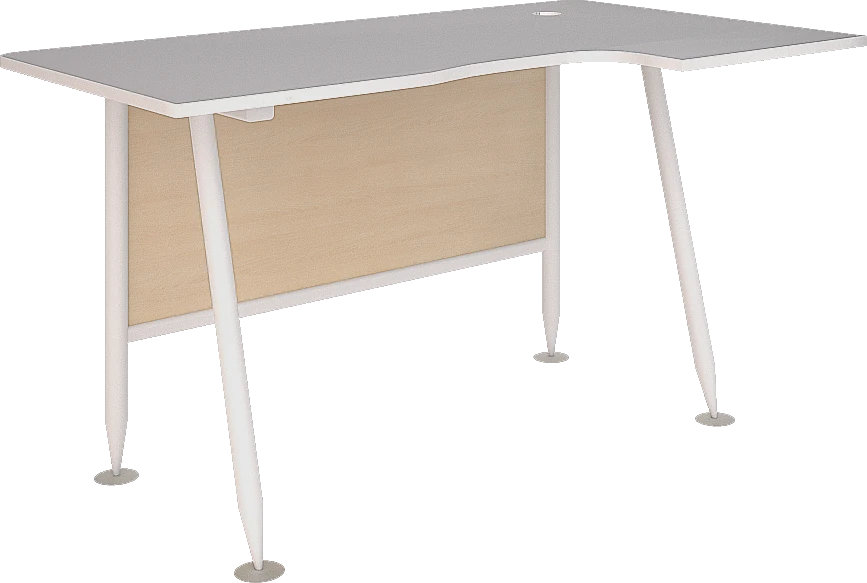

Teacher's desk (ergonomic desk) FrStP 3.12

Side supports are L-shaped, consist of a metal pipe with a diameter of 40mm, thickness 1.2mm and a lintel of profile pipe with a cross-section of 40x25mm, thickness 1.5mm. On the side supports in the area of the lintel, a 40x25mm crossbar with a thickness of 1.5mm is welded. The lintel and the 40x25mm crossbar have holes for self-tapping screws for fixing the cover to the table frame. In the rear part of the frame to the two supports to the pipes with diameter 40mm two crossbeams of metal flat-oval pipe with cross-section 30x15mm with thickness 1,5mm and on each side two plates 35x30mm with thickness 2mm are welded. The legs of the table frame are fitted with an adjustable support with a swivel joint. It is designed for a pipe with a round cross-section with a diameter of 40 mm. It has a round base with a diameter of 80 mm. The angle of inclination is up to 45°. All visible holes in the pipe are covered with plastic plugs. The frame is painted with polyester powder paint. Cover LDFP 22mm .holes for wires with plastic plugs.Tsarga LDFP 16mm.
