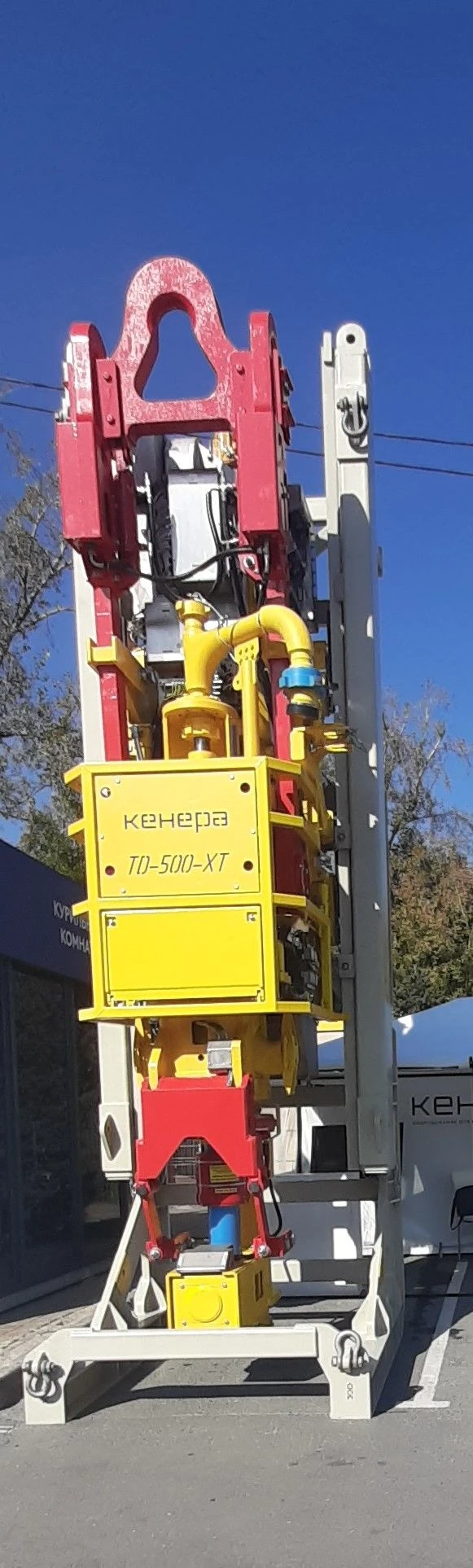

TD-500-XT Mobile Top Drive System for Deep Drilling Applications

Drilling Machine Parts

Manufacturer: KENERA LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

SVP TD-500-XT is a mobile and firmly installed device for deep drilling rigs with different types of mast. The system is driven by an induction motor. The top drive is controlled by a separate control panel.

The TD-500-XT is used for drilling vertical, directional and horizontal wells. TD-500-XT is used as a part of land drilling rigs of cluster and stationary drilling in macroclimatic regions with temperate and cold climate with seasonal temperatures in the range from -45?? to + 55??

at fields with hydrogen sulphide content less than 6%. Estimated service life is not less than 20 years.

Specifications

Payload

454 t

Motor power

1156 hp

Gearbox

Helical gear 14:1

Main drive

AC induction motor

Torque

Max torque 70,580 Nm
