Available for Import

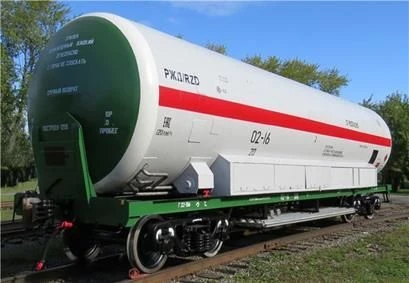

Tank wagon special 15-5106 for LNG and ethylene, JSC "Uralkriomash" Russia

Rail Tank Wagons

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Tank wagon special 15-5106 for LNG and ethylene, JSC "Uralkriomash" Russia

This rail tank wagons is manufactured in Russia and is available for import to global markets. Russian-made products are known for their durability, reliability, and excellent price-to-performance ratio.

For detailed product specifications, please see the Specifications tab. Contact our team to request pricing, availability, and shipping information.

We provide full assistance with:

Technical consultation and product selection
Bulk pricing and volume discounts
Export documentation and customs clearance
Logistics and shipping solutions
Payment security and transaction support

Technical Specifications

Type of product according to PP RF 616	Tank cars
Assignment	for spg and ethylene
Designation	15-5106
Name	?????-????????
Base	- capacity 10000mm; - trolley 1850mm
Tank capacity	65.4?3
Drainage-free storage time	(at pressure rise from 0.05 mpa to 0.5 mpa) 42 (85)days
Pressure in the isolation space	during operation (in warm condition), 1.33 (1x10-2) pa (mmHg)
Vessel pressure	(working) 0.5 (5.1) mpa (kgf/cm2); (test without taking into account vacuum in the heat-insulating cavity) 1.1 (11.22) mpa (kgf/cm2); (test in the presence of vacuum in the heat-insulating cavity) 1.0 (10.2) mpa (kgf/cm2)
Length	- along the coupling axes of couplers 15090mm; - along the frame end beams 13870mm; - capacity 14144mm
Permissible vessel wall temperature	-196 to +70°c
Design speed	120km/h.
Weight of product to be poured	23.56t, (31.66t)
Product losses from evaporation	(at stationary storage reduced to temperature: t=306k (33os) and p=0.1 mpa (760mmHg)) 0.417 (0.227) % per day
Design static load	(from wheelset to rails maximum) 230.3 (23.5) kn (tf)
Cart	biaxial 18-100, type 2
Tare weight	40.45?

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
