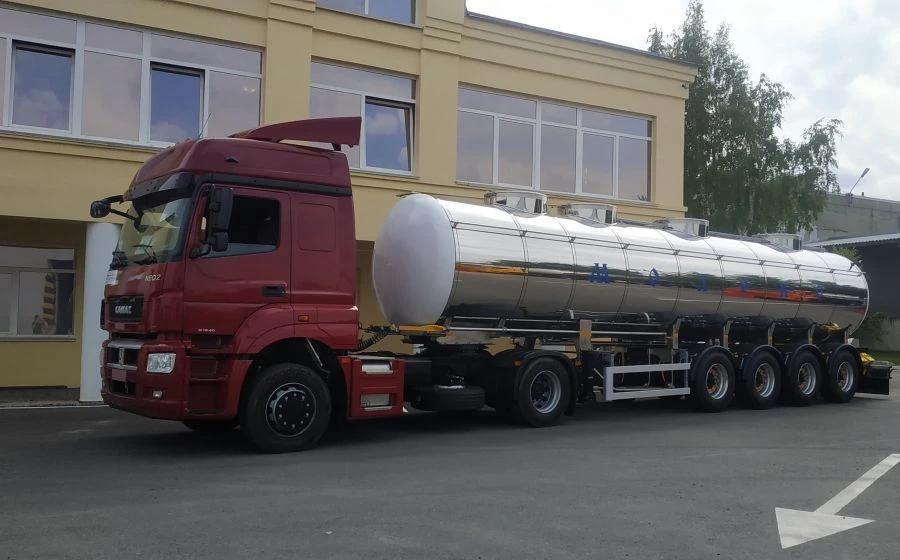

Tank semi-trailer with supporting construction model YADISH-VM-PPC 912861

Available for Import

Tank Semi-Trailer with Supporting Construction YADISH-VM-PPC 912861 for Efficient Liquid Transport

Liquid Transport Trailers

Manufacturer: VOLOGODSKIE MASHINY LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Model 912861 Volume up to 30 000 litres Chassis 4 axle undercarriage Number of sections, pcs 3 Tank section "circle" Tank material (outer skin, inner casing): stainless steel AISI 304 Drainage pipe diameter, mm drain manifold DN 80 Diameter of hatches and necks, mm DN 500 Bottom valves (control) DN 80, manually operated from the top of the tank. Thermal insulation: ISOVER SAUNA foil, provides product temperature change ±2 C for 10 hours at 30 C° difference between product and ambient air temperature. Service platforms: upper, on the right side of the tank made of cut-profiled decking with a handrail and ladder. Dimensions: length 9350 mm, width 2500 mm, height 3600 mm

Specifications

Type of product according to PP RF 616

Tank trailers and semi-trailers for transportation of oil products, water and other liquids

Wheel arrangement

3/6

Equipment

Washing system, service platform, parking lights, brake signals

Base machine type

undercarriage of support structure

Front track

2040 mm

Rear track

2040 mm

Tank length

9...16 m

Tank width

3 m

Tank height

3...4 m

Tank material

stainless steel AISI 304

Assignment

for the carriage of edible liquids

Climatic version

temperate climatic region

Payload

30000 kg

Thermal insulation

ISOVER foil/infused polyurethane foam

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.

Save Your Time

Share your requirements for a quick response!

Looking for

Quantity

Your mobile

Instant response in 15 minutes

Best wholesale prices guaranteed

Direct from manufacturer

Delivery & Payment

Shipping Terms

FOB Novorossiysk, Russia CIF Available to major ports worldwide EXW Manufacturer's facility, Russia

Delivery Time

Sea freight: 30-60 days (depending on destination) Air freight: 14-21 days (for urgent orders)

Payment Methods

Letter of Credit (L/C) Wire Transfer (T/T) Escrow Services
