Available for Import

Tank container for liquefied natural gas (LNG) and cooled liquid ethylene. Model KCM-40/0,7

Liquid Cargo Containers

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Available Models

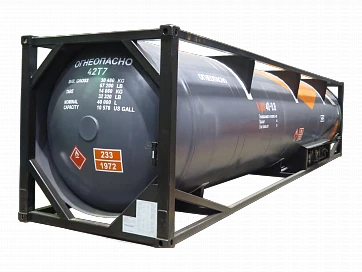

Container Tank-container KCM 40/0,7 for LNG (liquefied natural gas) 40000L AO "Uralkriomash" Russia

Description

The tank container model KCM-40/0,7 is designed for receiving, storing, dispensing of liquefied natural gas (LNG) and cooled liquid ethylene. It serves as a container for transporting by road, railway and sea transport, ensuring full safety and conditionality of the product.
KCM-40/0,7 consists of a cryogenic tank fixed on end frames, cryogenic shut-off, safety valves and instrumentation placed in the valve compartment, and a safe drainage device.
The flanges of the draining and filling device are located in the valve compartment, which is located at the bottom of the cylindrical surface of the tank, which in turn facilitates the LNG draining and filling process.

Specifications

Name Tank container

Designation kcm

Type un t75

Material 09G2S-14

Equipment ns; vn; nn

Mark 40

Assignment for spg (liquefied natural gas)

Vessel capacity 40000?

Pressure in the isolation space during operation (in warm condition) not more than 0.133 (1x10-3) pa (mmHg)

Vessel pressure (operating) 0.7MPa; (test) 0.94MPa

Control hold time at least 54 (77) days

Weight of product to be poured 14.45t (16.4)t

Vaporizer material aluminium alloy ad31 gost 4784-97

Sheath material low-alloy steel 09g2s-14 gost 19281

Vessel material corrosive steel 08x18n10t gost 5632

Material of piping and fittings Corrosion-resistant steel 12x18n10t gost 5632; steel 1;4308/1;4301 according to din en or 1;4409/1;4401 according to w 10088-1; en 10213

Assigned service life 20 years

Initial filling level (at 0;15 mpa abs.) not more than 0.361 (86); 0.41 (73.5) kg/l (%)

Volume of insulating space 12.21?3

Evaporation losses (at stationary storage reduced to temperature: t=306k (33os) and p=0;1 mpa (760mmHg)) 0.28 (0.224) % per day

Pouring and draining method fill bottom; top. drain bottom - evaporator or third-party source supercharging. (fill bottom; top. drain bottom - supercharged by a third party source)

Vessel wall temperature -161°?

Operating temperature range -40 to +50°C

Insulation type vacuum

Management of work operations manual

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.

Save Your Time

Share your requirements for a quick response!

Looking for

Quantity

Your mobile

Instant response in 15 minutes

Best wholesale prices guaranteed

Direct from manufacturer

Delivery & Payment

Shipping Terms

FOB Novorossiysk, Russia CIF Available to major ports worldwide EXW Manufacturer's facility, Russia

Delivery Time

Sea freight: 30-60 days (depending on destination) Air freight: 14-21 days (for urgent orders)

Payment Methods

Letter of Credit (L/C) Wire Transfer (T/T) Escrow Services
