System of collection and processing of technological information SSTI

The collection system is designed to check the
operability, adjustment, tests,
repair, technical and metrological maintenance
equipment of the stations of geological and technological
research.
The collection system provides channels for
connection of the following types of devices:
- devices supporting SenNet network protocol
with a physical layer based on RS-485 interface;
- devices supporting exchange over
single-wire line (1-Wire channel) using protocols,
compatible with MicroLAN by
DallasSemiconductor;
- devices with 4-20 mA analogue output;
? devices with 5V TTL pulse signals.
The product provides the possibility to connect
Driller's console IPB-280-03.1, IPB-280-04.1E, as well as
DKPI-310-03 or DKPI 310-04E series depth gauges, both as a part of the complex and in different types.
as a part of the complex and in various combinations
devices connected to them.

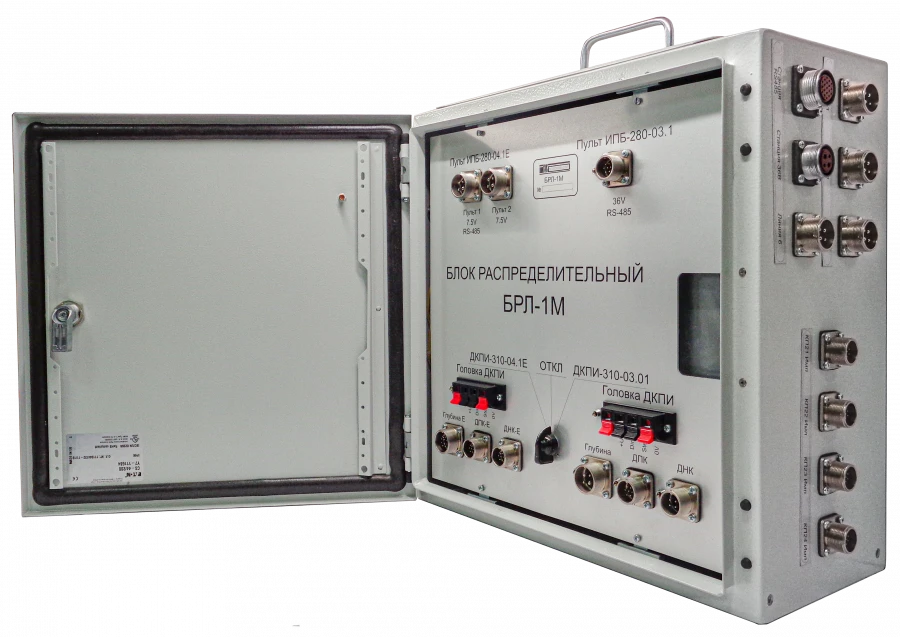

SSTI consists of Control Unit BU-201L-USB and
Distribution Block BRL-1M connected to it.
