Available for Import

System board (main) FD-AD for video signal conversion and monitor control, TFPM.468362.006

Mounted Circuit Boards

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

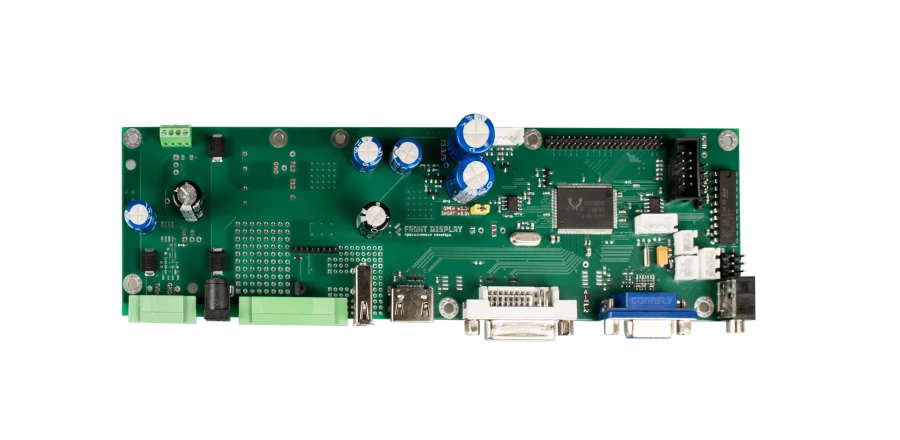

Monitor control board designed to convert, form and output video signals to the LCD matrix. In the final product "Monitor" this board performs the function of the system (main) board.

Technical Specifications

Management	OSD menu, Keyboard connector (5 buttons and indicator)
Input voltage	12-30 VDC (+/- 5%)
Power consumption of the module (not including the backlight of the LCD matrix)	5W max.
Connectors	1 x DC Jack, 1 x terminal block
Output interfaces	LVDS (40 pins) 2 channels, 18/24/36/48 bits
Input interfaces	VGA, DVI-D, HDMI 1.4
LCD backlight consumption current	Not more than 3A
LCD backlight supply voltage	12VDC (+/- 5%)
Power supply voltage for LCD matrix	3.3 or 5 or 12 VDC (+/- 5%), set by jumpers on the module
Maximum resolution	1920 ? 1080

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
