Symmetrical communication cable for digital transmission systems U/UTP wire rope

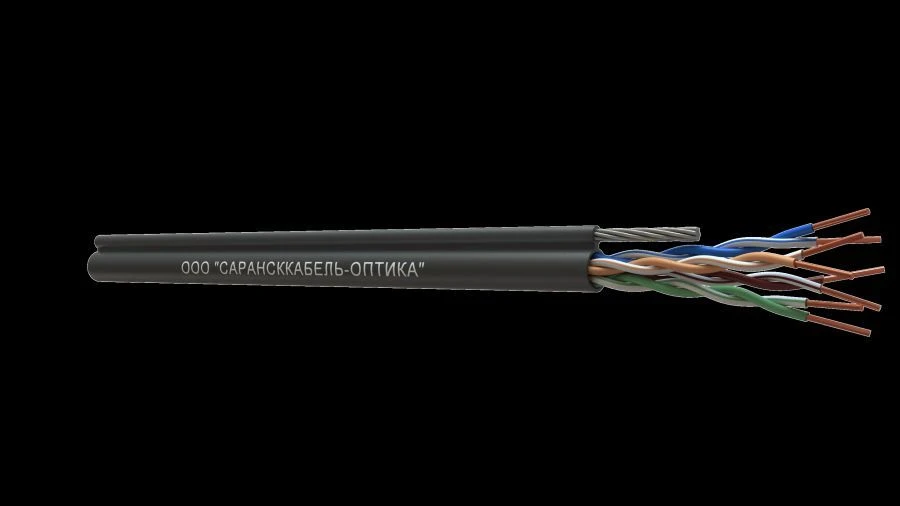

Cable contains single-wire current-conducting insulated copper conductors in a sheath of polymer material and a supporting element - steel cable (design in the form of a "figure eight"), located in a common sheath. Insulated copper conductors have different colour markings and are twisted into pairs. The number of pairs in the cable is from 1 to 4. The pairs are twisted into a core. A polyethylene terephthalate tape can be applied over the twisted core. An outer sheath of light-stabilised polyethylene (PE) is superimposed over the core and the supporting power element.
