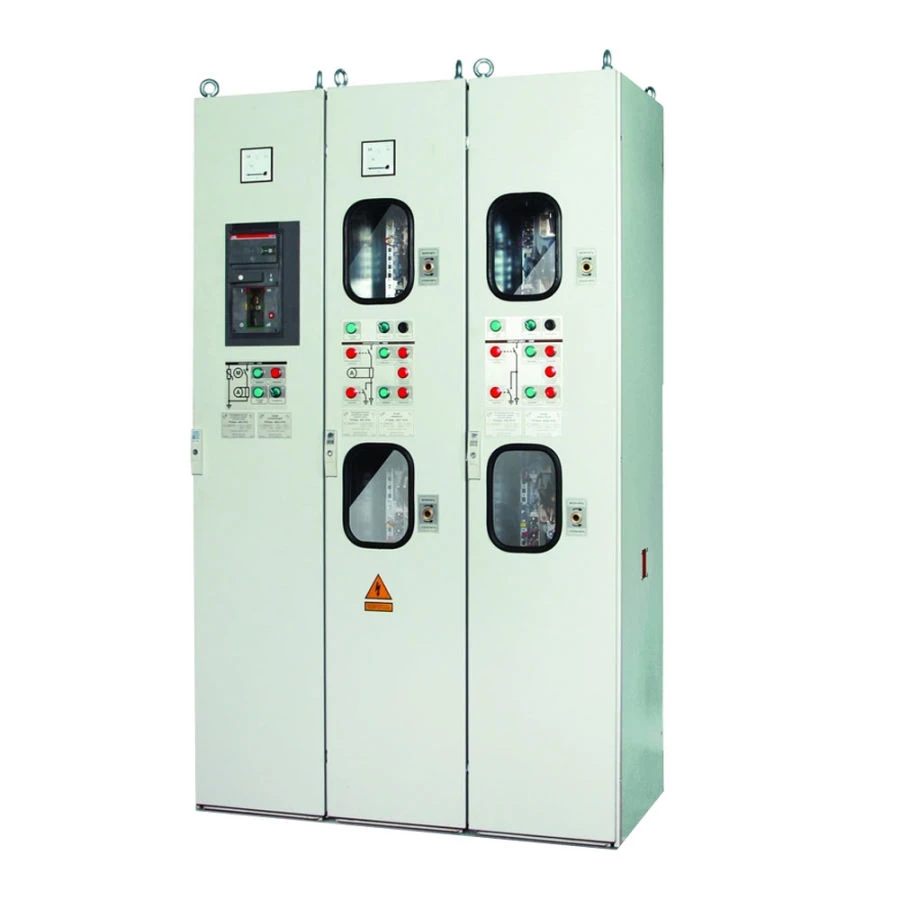

Switchgear of negative bus RUOSH-600
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Description
Distributing device of negative bus RUOSH-600 is designed to work in the distribution system of direct current (-) 600V traction substations of tram and trolleybus. Switchgear RUOSH-600 consists of the following cabinets: Unit cabinet RUOSH-600A is designed for connection and switching without current of negative supply cables of rectifier unit to negative bus (-) 600V. Linear switchboard RUOSH-600L is designed for connection and switching without current of negative supply cables of the contact network to the negative bus (-) 600V. Grounding cabinet RUOSH-600Z is designed to ground the negative bus (-) 600V in order to ensure the safety of repair work on the contact network.
Specifications
Types of RUOSH-600 cabinets
RUOSHm-600A
Rated voltage of DC power circuits
600 V
Rated current of power circuits by enclosure type
2000 A
Types of disconnectors to be used (main, earthing)
P15-1250M1
Type of switch-disconnector used
S6D800
Total switch-on/off time, s
3
Drive of switch-disconnector, disconnect switch
Motorised with manual override option
Rated voltage of control, lighting/signalling circuits (alternating current), volts
220/36
Test voltage between power circuits, enclosure housing and control circuits, not less, kV
5
Height
2000 mm
Width
600 mm
Depth
400 mm
Weight by types of cabinets, not more than
110 kg
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
