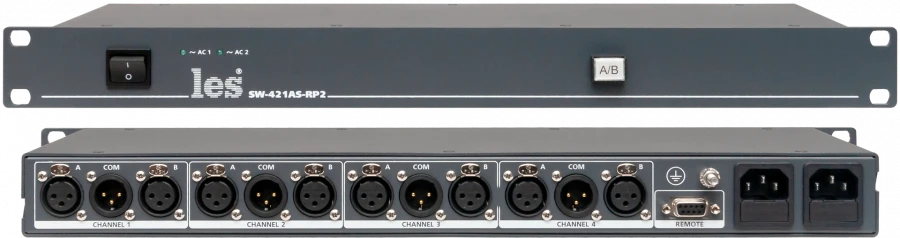

SW-421AS-RP2 - 4 channel 2-in-1 relay switch for analogue symmetrical audio signals.

Standalone Communication Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

Relay switch analogue symmetrical audio signals consists of 4 independent channels, each of which provides switching between 2 signal sources to a common output by external control command GPI, or with the help of the button "A / B" located on the front panel of the switch. When pressing the button "A/B" unconditional switching of all 4 channels takes place, the released position of the button allows channel-by-channel (independent) switching between inputs using external GPI control signals. Switching of signals is asynchronous. In case of power failure, the switch outputs are connected to the main inputs. The switch has two power supplies to connect it to two independent network feeders. For normal operation of the device it is sufficient to connect at least one power supply. The front panel of the switch has mounting holes for installing it in a telecoms rack or console of standard 19" width.

Specifications

Audio input format Analog, symmetrical

Number of independent switches 2 in 1 4

Switching torque asynchronous

Number of inputs per channel 2 pc

Number of outputs per channel 1 pc

Type of input connectors 3-pin XLR female

Type of output connectors 3-pin XLR male

Type of tract high impedance, symmetrical

Transient attenuation between any pair of channels at 20 kHz, not worse 115

Number of GPI inputs 5 pc

GPI connector type DB-9 female

GPI input signal type level

Power supply voltage 100...240 V

Power consumption 5 W

Number of power supplies 2 pc

Operating temperature range 5...40 °C

Overall dimensions (W-W-H) 483...44 mm

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
