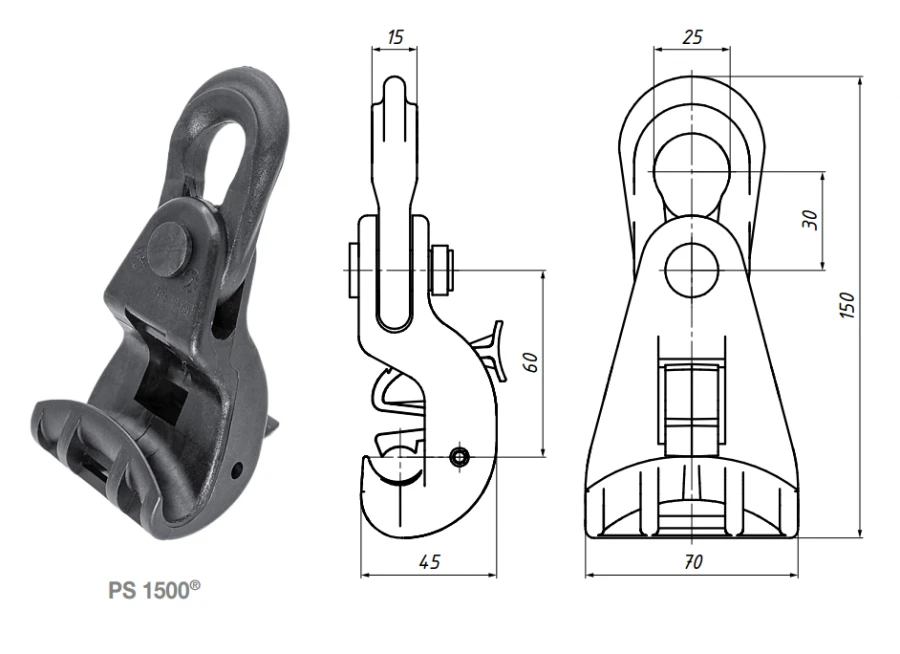

Suspension clamp PS 1500

Suspended support clamps are used for fixing CIP-2 on intermediate supports.

Product Material:
Glass-reinforced polyamide

Characteristic:
The clamp elements in contact with the supporting neutral core are made of dielectric material and act as an insulator and protect the core insulation from mechanical damage.
Provides the necessary degree of freedom for the suspension of CIP.

Distinctive features:
The carrier neutral core is secured without tools.
The clamp has a limited-strength link to protect the trunk line from breakage.
During longitudinal movement of the CIP, the movable link reduces the cyclic deformation of the support core.

Mounting features:
The clamp when mounted on the bracket should be facing the gutter towards the support.
