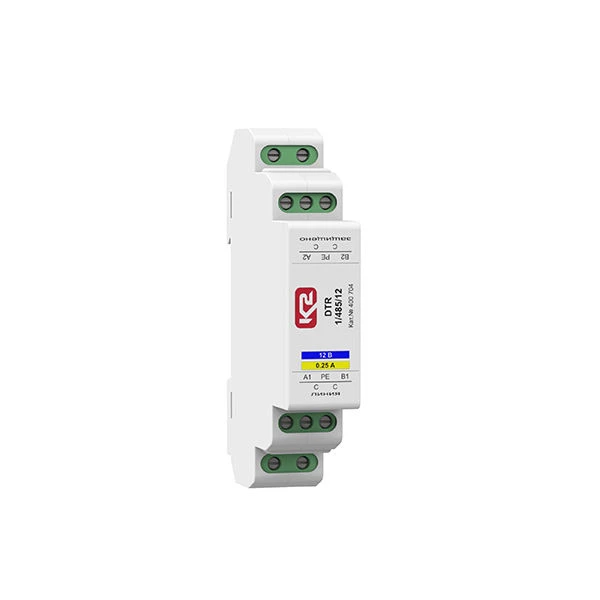

Surge Protection Device DTR 1/485/12 (LT) for RS-485 Interface Applications

USIPs of DTR */485/** series, TU 3428-002-79740390-2007 are designed to protect RS-485 serial interface lines with data transmission rate up to 10 Mbit/s from impulse overvoltages (lightning protection, protection against electrostatic discharges, etc.) within 0V - 1 zone of lightning protection in accordance with GOST R IEC 62305-1-2010. Number of protected conductor pairs 1, connection by means of screw terminals 4,00 mm. Capable of passing the rated discharge current In (8/20)= 20kA. Data transfer rate up to 10 Mbit/s.
