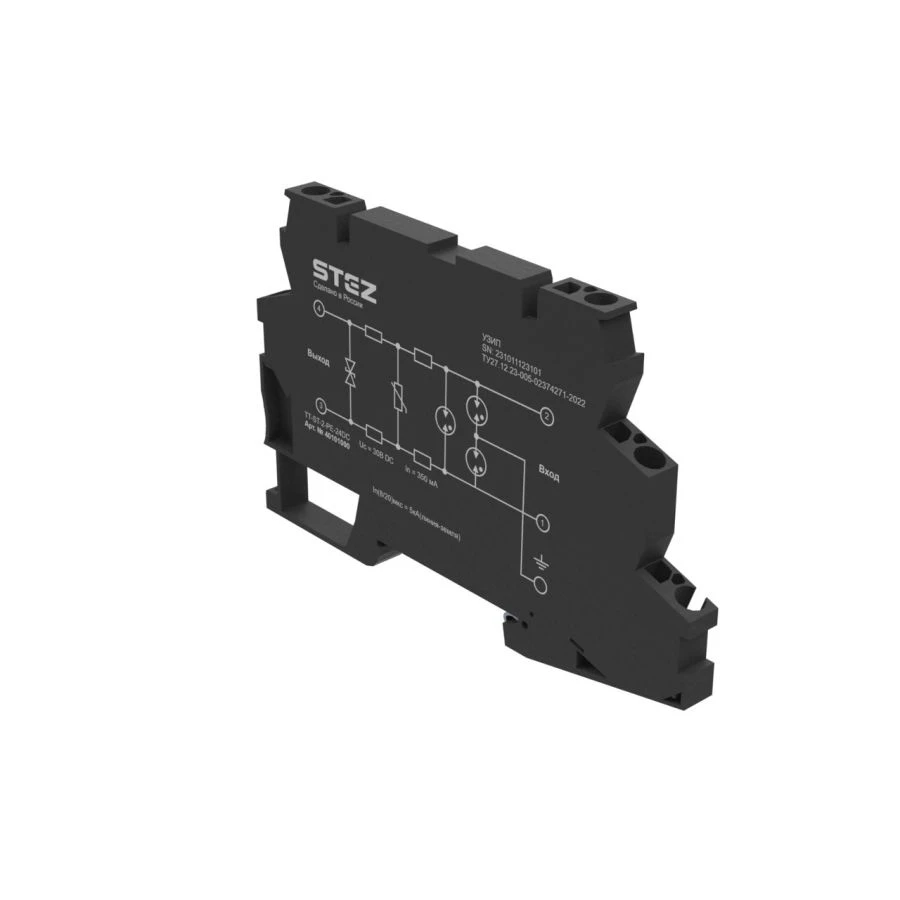

Surge Protection Device for Measuring and Regulating Equipment TT-ST-2-PE-24DC

Electrical Protection Devices

Manufacturer: STEZ LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

Protection device against impulse overvoltages for measuring and regulating equipment of TT-ST-2-PE/S2-24 series.

Description

TT-ST-2-PE-24DC surge protection device for control and regulating equipment, designed to protect the signal circuit without ground potential

Specifications

Operating temperature

-40...85 °C

Number of channels

1 pcs

Type of line to be protected

AI, AO, HART, RS-485 (up to 1 Mbps)

Voltage protection level Line-to-Earth

600 V

Voltage protection level Line-to-Line

40 V

Rated load current

0.35 A

Pulse current (10/350)

1000 A

Rated discharge current (8/20)

5000 A

Maximum continuous DC operating voltage

30 V

Maximum continuous operating voltage AC

21 V

Rated DC voltage

24 V

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
