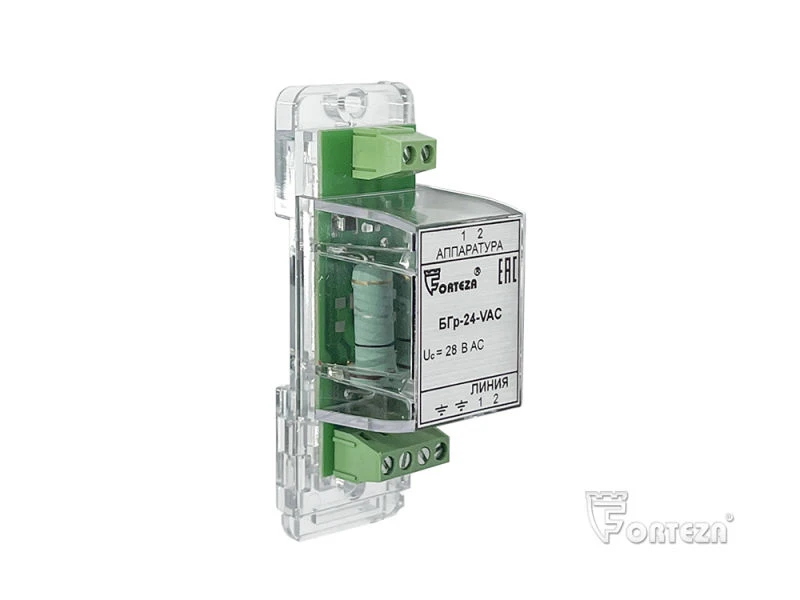

Surge Protection Device "Block BGr-24B AC" for Security System Applications

Surge Protection Devices

Manufacturer: OKHRANNAIA TEKHNIKA LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The unit is used to protect the power supply circuits of security detectors, as well as other circuits of the alarm system from short-term overvoltage caused by flooding in long lines at lightning discharge.BGr-24V AC provides protection of two signal circuits or power supply circuits. The unit is designed for use in AC circuits (5 A) with voltage up to 24 V. It is made in a housing for mounting on a DIN-rail.

Specifications

Operating temperature range

-55...65 °C

Protection voltage for circuit 1-2:

70 V

Resistance introduced into the circuit

Not more than 0,12 ohm

Number of circuits

2 pcs

Operating current, max.

5 A

Test pulse

4 kV

Degree of enclosure protection

IP-20

Weight

0.1 kg

Dimensions

96x33x41 mm

Maximum continuous operating voltage AC

28 V

Rated operating voltage AC

24 V

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
