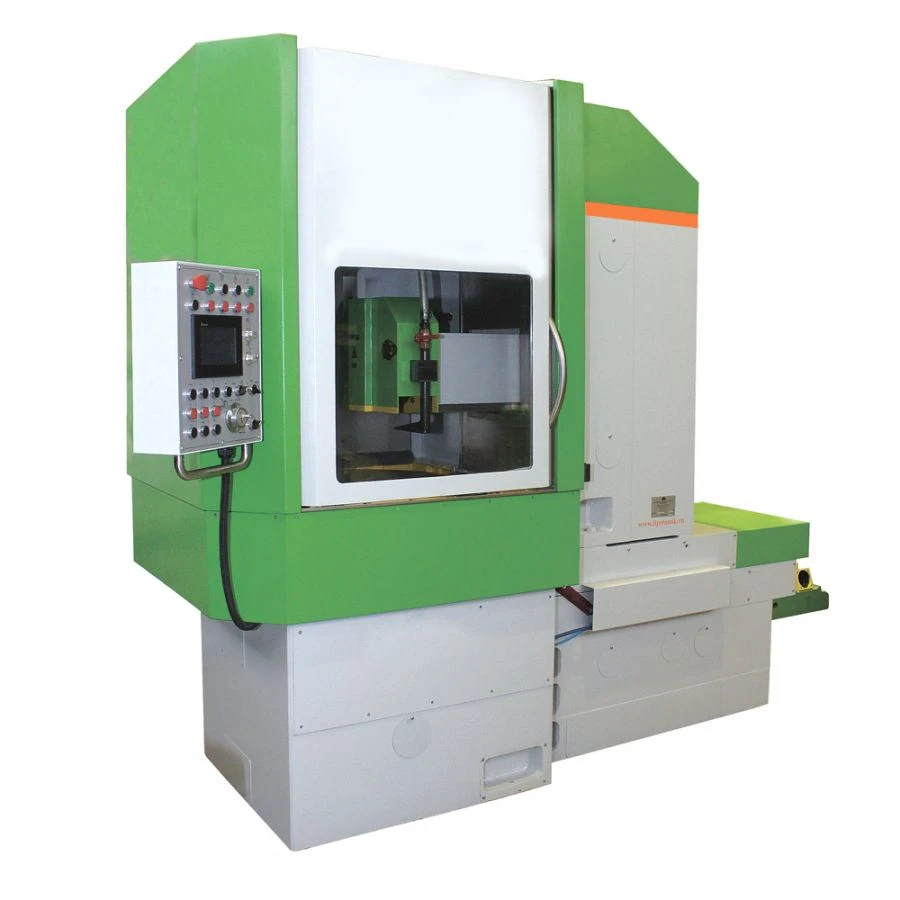

Surface grinding machine with circular magnetic table and horizontal spindle mod. LSH600VF2

Manufacturer:
Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Key Highlights

  • Made in Russia - engineered for durability
  • Suitable for challenging environments
  • Lower cost of ownership than European alternatives
  • Bulk orders available with volume discounts
  • Documentation and customs clearance assistance provided
Stank plane grinding with a circular magnetic table and horizontal spindle model LSH600F2, is designed for grinding periphery of the circle flat surfaces of workpieces from ferromagnetic materials. Type of climatic execution - UHL4 according to GOST 15150. Placement category of the machine - 4.1 according to GOST 15150. Degree of machine automation - software control (position and rectangular systems). The machine is a modification of the basic model ZL741 and has the following constructive differences:

- desk fence of the "cabinet" type;
The electrical equipment includes:

DELTA ELEKTRONICS
servomotors for longitudinal and vertical feeds
electronic handwheel for vertical movement of the grinding headstock and longitudinal movement of the stand.
The machine is also equipped with HMI "Human-Machine Interface", which allows directly from the HMI to perform configuration, debugging, control and maintenance of the machine as a whole.

Technical Specifications

Type of product according to PP RF 616 Surface grinding machines with rectangular or circular table (universal, CNC, CNC)
Length 2700 mm
Width 2150 mm
Height 2450 mm
Model LSH600VF2
Limit dimensions of the workpiece to be fitted greatest height 350 mm
Limit dimensions of machined outer surface largest diameter 630 mm
Maximum mass of the workpiece to be installed 300 kg
Grinding wheel according to GOST R 52781-2007 450x80x203 mm
Smallest diameter of the worn wheel 320 mm
Diameter of grinding spindle end according to GOST 2323 80 mm
Diameter of the working surface of the table 630 mm
Maximum movement of the stand 430 mm
Maximum vertical movement of the grinding headstock 415 mm
Greatest distance from the spindle axis to the working surface of the table 575 mm
Magnitude of emergency grinding headstock withdrawal, not less than 1 mm
Table speed limits On 600 mm diameter (installation) 8-32
Drive power 11 kW
Machine weight, (without attachments) 5320 kg
Machine weight, (with attachments) 5500 kg
Maximum distance from the machine base to the working surface of the table, max. 1060 mm

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
