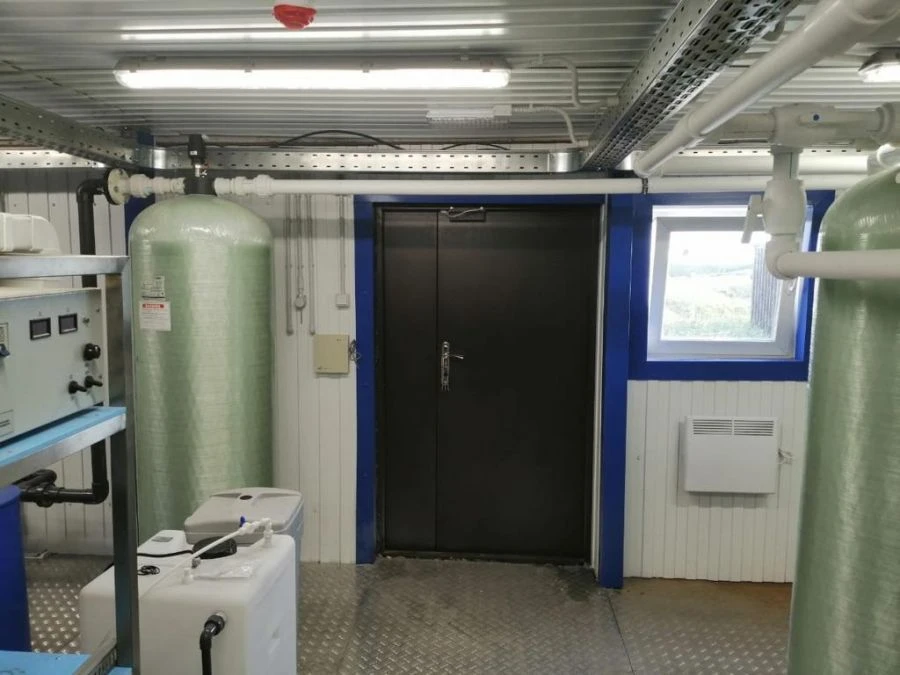

Surface and Groundwater Treatment Station AGMA-VOS for Water Supply Systems

Water Purification Equipment

Manufacturer: GIPERION LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The station of natural water treatment (surface and underground sources) for water supply systems of "AGMA-VOS" series with capacity from 5 to 10000 m3/day depending on the design and initial data of the project can include the following stages of the technological process: Aeration stage Depending on the initial data of the project may include: <ul> <li>- Degasser and aerated water tank.</li> </ul>The purpose of the degasser is to oxygenate the water, remove carbon dioxide and methane, and prevent the formation of finely dispersed trivalent iron hydroxide, which then rushes through the filter media. Air supply to the degasser is carried out by fans (the type of fan is determined according to the initial project data). In order to prevent water cooling by air, the fan is interconnected with a calorifier (type of calorifier is determined according to the initial data of the project). The design of the heater provides for the possibility of manual adjustment of the power consumption. The upper part of the degas...

Specifications

Length

3100...42000 mm

Width

3100...12000 mm

Height

3100...7000 mm

Purified water parameters: manganese

Up to 0,1

Source water parameters: permanganate acidity

up to 5

Purified water parameters: permanganate oxidisability

up to 5

Source water parameters: chromaticity

up to 30

Purified water parameters: colour

up to 20

Source water parameters: turbidity

up to 15

Purified water parameters: turbidity

Up to 1.5

Performance

5-10000

Installed capacity of electrical equipment

10.5...220 kW

Power supply voltage

380 W

Current frequency

SBVVBG

Source water parameters: total iron

Up to 1.5

Purified water parameters: total iron

up to 0.3

Source water parameters: manganese

Up to 0.25

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
