Subscriber modules of automatic voice announcement system RECHOR AM, AM(U).

Security and Fire Control Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

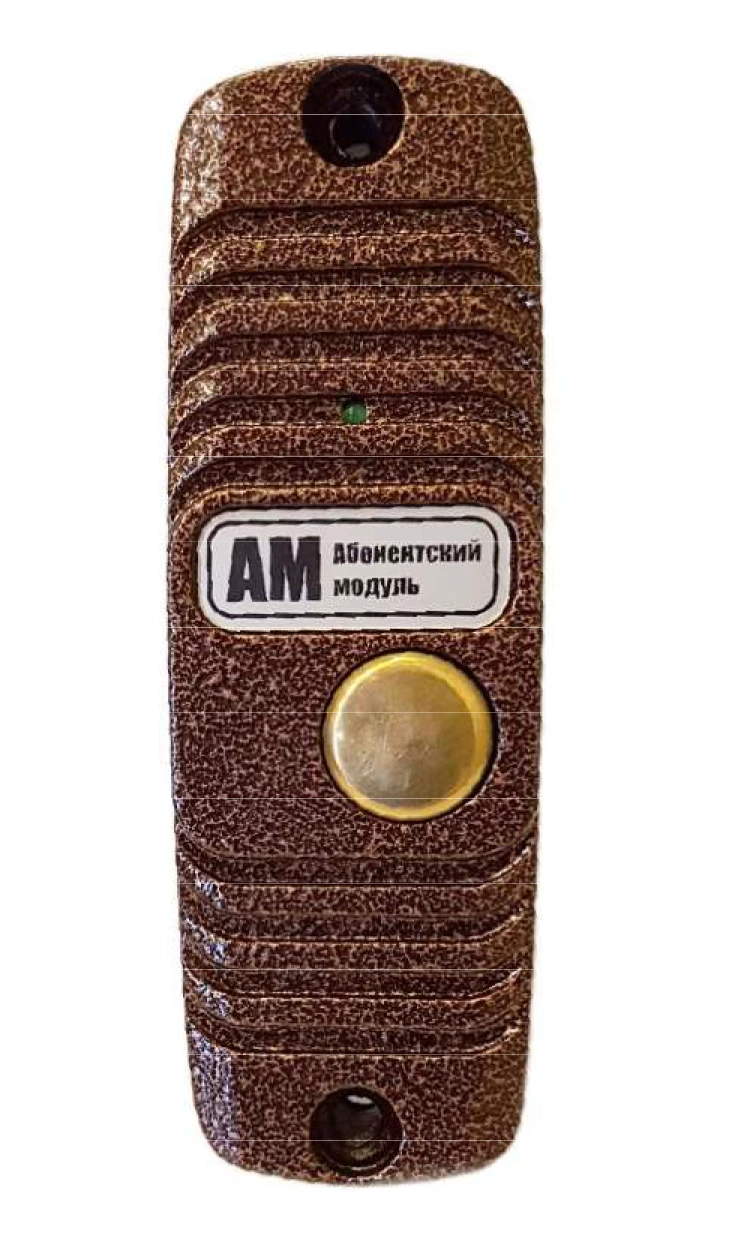

Subscriber modules are designed to provide two-way digital duplex communication of fire alarm zones with the premises of the fire station or dispatch room as part of the dispatch communication system RECHOR BDS.
Structurally, the module is designed as a functionally complete unit designed for installation on the wall.
Power is supplied by two pairs of four pairs of "Twisted Pair" type connection cable with a constant voltage of 24 V from the dispatch communication unit BDS.
Transmission of control and sound signals between OBD and AM is carried out via digital control bus with closed communication protocol. For correct operation of the communication system, each subscriber module has its own unique subscriber number (address).

Technical Specifications

Assignment	Two-way communication of fire alarm zones with fire station or control room.
Digital sound transmission system	Armoured glass
Duplex communication	Armoured glass
Maximum communication line length	2000 m
Rated power of audio frequency amplifier in remote intercom panel	0.5 W
Frequency response of the amplifier, at 3 dB non-uniformity	70 Hz ÷ 4 kHz
Non-linear distortion at rated output power	? 1%
Voltage DC power supply via two pairs of UTP cable from OBD unit	6÷30 V
Maximum power consumption of the WFP unit	2 W
Unit dimensions (H x W x D)	125 x 45 x 25 mm
Weight of the unit without packing, not more	0.15 kg
Mounting type	Installation on wall
Operating temperature	0 °C to + 55 °C
Relative humidity	? 93 % at 40°C

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
