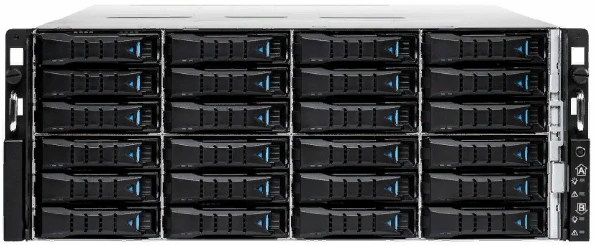

Storage system server B-DSS-500 (ASHNE.466539.002-04)

Data Processing Systems

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Available Models

Data storage system server B-DSS-500 (ASHNE.466539.002) Storage system server B-DSS-500 (ASHNE.466539.002-02)

The B-DSS-500 data storage server is a dual-controller hardware solution in a single chassis in various versions according to specifications.

Technical Specifications

SATA interface	Armoured glass
Chipset	Intel C622 PCH
Type of memory	RDIMM/LRDIMM DDR4 2400/2666 MHz
Hard disks	Up to 24 HDD/SSD disks of 3.5"/2.5" form factor with SAS interface with hot-swap with simultaneous access from two controllers of different capacities according to specifications
Width	438 mm
Depth	705 mm
Height	175 mm
Expansion slots	2 PCI Express 3.0 x16 slots; 3 PCI Express 3.0 x8 slots;6 SFF-8643 slots with PCI Express 3.0 x4 support for NVMe SSD connection;1 M.2 (2242/2280) slot with SATA/PCIe x4 support;2 PCI Express 3.0 x16 slots; 3 PCI Express 3.0 x8 slots;6 slots
Socket MP	FCLGA3647
Integrated network controllers	Per controller: 1 Intel Lewisburg 10GbE controller (from PCH): supports up to 10Gbps data transfer; dual rear panel SFP+ module slots; 1 Realtek RTL8201E controller for BMC management port: supports up to 10Gbps data transfer
System memory	12x 288-pin DDR4 RDIMM/LRDIMM connectors; Supports DDR4 2400/2666 MHz memory modules; DDR4 I/O 1.2V; Supports Intel Optane Technology
SATA/SAS controllers	2 mini-SAS connectors with support for 8 SATA interfaces (from PCH); 2 7-pin SATA connectors with support for 2 SATA interfaces (from PCH); support for SATA 3.0 specification for all ports, speeds up to 6Gbps; Broadcom SAS controller IOC SAS3008:
Integrated graphics subsystem	Integrated graphics subsystem in BMC Aspeed AST2500: PCIe VGA/2D controller; resolution support up to 1920x1200, 60 Hz
System BIOS	UEFI BIOS; BIOS features: ACPI support, PXE, WOL, AC loss recovery, IPMI KCS interface, SMBIOS, Serial console redirection, BIOS Boot Specification, BIOS Recovery Mode, SRIOV, iSCSI, TPM, PCIe Hotplug
Main Board Control Controller (BMC)	Aspeed AST2500 controller
Processor	Intel Xeon Gold 6240R (24C/2.4GHz)
Power supply voltage	187...242 V

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
