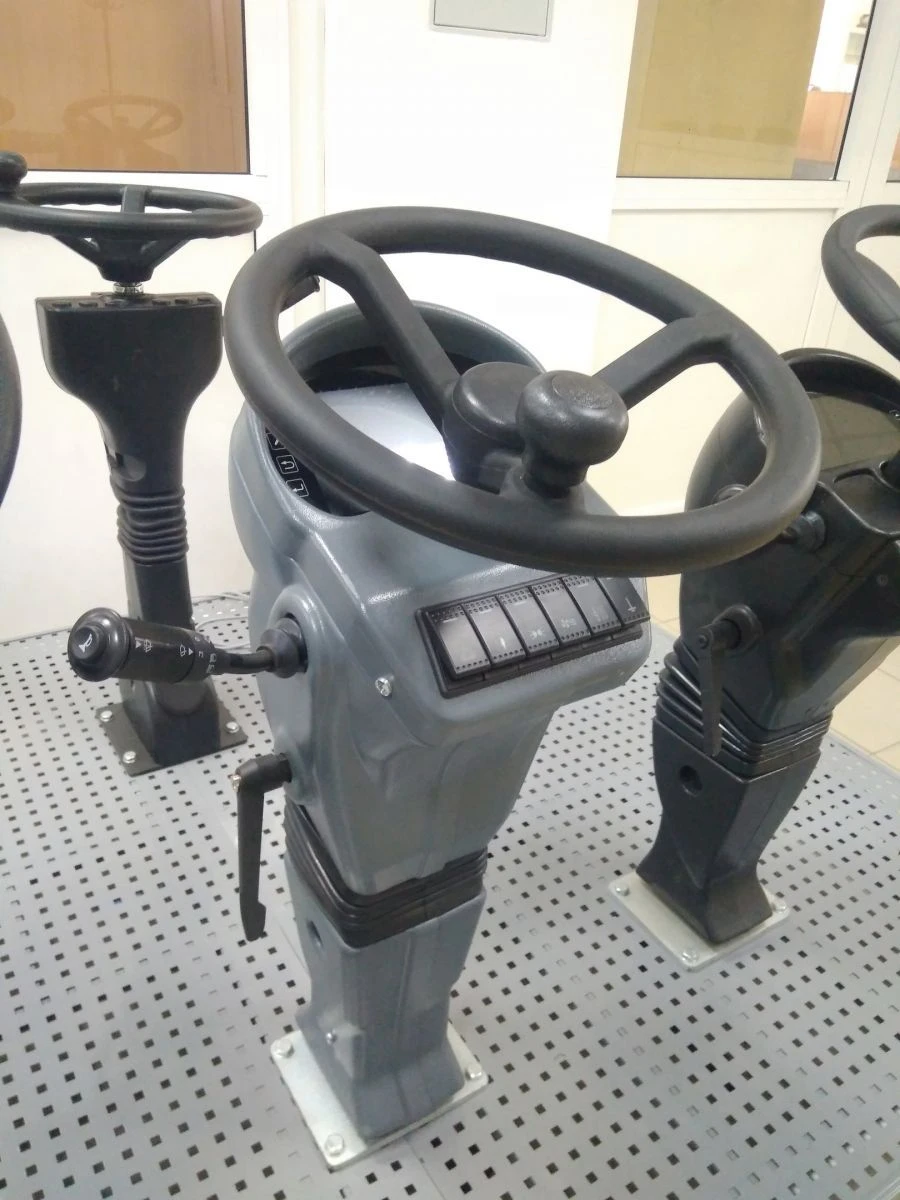

Steering column KR111-001

KR series steering columns are designed to complete special self-propelled wheeled machines (tractors, combines, road-building machines, heavy-duty vehicles), is a part of hydraulic steering.
Main features:
- black or grey ABS plastic coating;
- possibility of steering column angle adjustment;
- optional equipment with two paddle shifters;
- possibility to equip with an engine start button with illumination and sound signal
instead of an ignition switch with keys;
- customer-selectable connectors AMP CPC series 2 and 3, Schlemmer, or Autocontact;
- output spline shaft to ANSI B 92.1-1970 (16/32. m=1.5875, z=12);
- can be supplied with a 7", 8" or freestanding 10" colour LCD display instead of a set of separate units if required by the customer;
- the harness and wiring harnesses, together with the rest of the parts, constitute a complete, reliable design;
-...
