Stationary optical gas analysers GSO-R1 MGSO-R1

Physical Measurement Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

Gas analysers stationary optical GSO-R1, MGSO-R1 are stationary devices of continuous operation.
The principle of operation of gas analysers is optical absorption.
The method of sampling is diffusion.
Gas analysers are available in two modifications:
- GSO-R1 - single-channel, with analogue (4-20 mA) and digital (HART, RS-485) output signals;

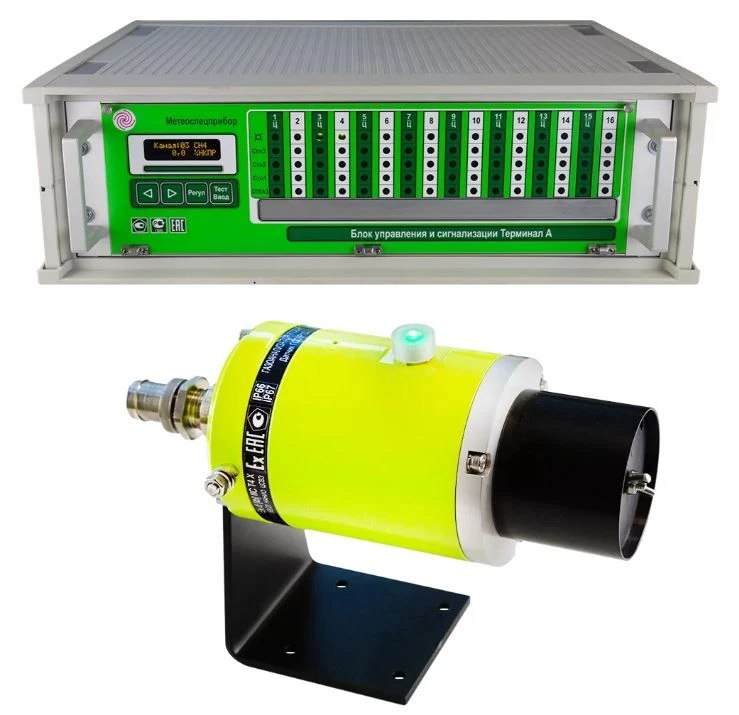

- MGSO-R1 - multichannel, with display of measurement results for each measuring channel on the display of the control and signalling unit "Terminal-A".
Gas analysers GSO-R1 are made in a metal (aluminium alloy or stainless steel) case and consist of two blocks - sensor GSO-R1D and indicator GSO-R1I (optional).
Gas analysers MGSO-R1 are multi-unit and consist of remote sensors (GCO-R1D) and control and signalling unit (terminal).

Specifications

Supply voltage (excluding deviation) 24 V

Supply current (excluding deviation), mA 250

Sensitivity, NCPR 0...100 %

Alarm three-colour LED; relay

Controlled gases Hydrocarbon vapours; carbon dioxide

Response time to the presence of the measured gas 10

Availability of the valve in the kit no

Assignment measurement of volume fraction or pre-explosive concentration of flammable gases and vapours of flammable liquids as well as volume fraction of carbon dioxide

View Gas analysers GEO-R1 are made in a metal (aluminium alloy or stainless steel) case and consist of two blocks - sensor GEO-R1D and indicator GEO-R1I (optional).
