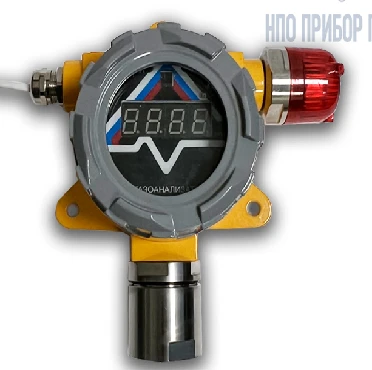

Stationary gas analyser GANK-T1D

Gas and Smoke Analysers

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

Gas analysers are designed to measure the content of volume fraction, mass and pre-explosion concentration of toxic, combustible, hydrocarbon gases and oxygen in the air of the working area, in closed (enclosed) and living spaces, in industrial premises and open spaces of industrial facilities, pipelines and air ducts, and to provide a warning signal of exceeding the established threshold values.

Specifications

Controlled gas Propane, methane, hydrogen sulfide, nitrogen oxide

Type Stationary

Equipment Gas analyzer, operating manual, passport

Housing material Steel

Operating temperature range -45...60 °C

Weight, not less 3 kg

Controlled substances (1 part) эфир); Бутилен (2-метилпроп-1-ен, бут-1-ен); Винилацетат (этенилацетат, уксусной кислоты виниловый эфир); Дизельное топливо; 1,2-Дихлорэтан; Изобутанол (бутан-2-ол, 2-метилпропанол-1); Изопропилбензол (1-метилэтил-бензол, кумол, 2-фенилпропан); Кислота мур

Controlled substances (Part 2) Pentane-1-ol (amyl alcohol); Ethenylbenzene (styrene); Carbon dioxide (carbon dioxide); Carbon monoxide (carbon monoxide, carbon monoxide); Tetrachloromethane (carbon 4-chloride, perchloromethane); Hydroxybenzene (phenol); Formaldehyde (methanal); Hydroflu

Measuring range According to the order

Warranty period 1 a

Service life, at least B1/B8 2100/900 MHz a

Inspection interval 1 a

Size 170×125×90 mm

50 Hz AC mains power supply voltage 220 V

DC supply voltage 17...30 V

Rated power consumption, not more 4 W

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
