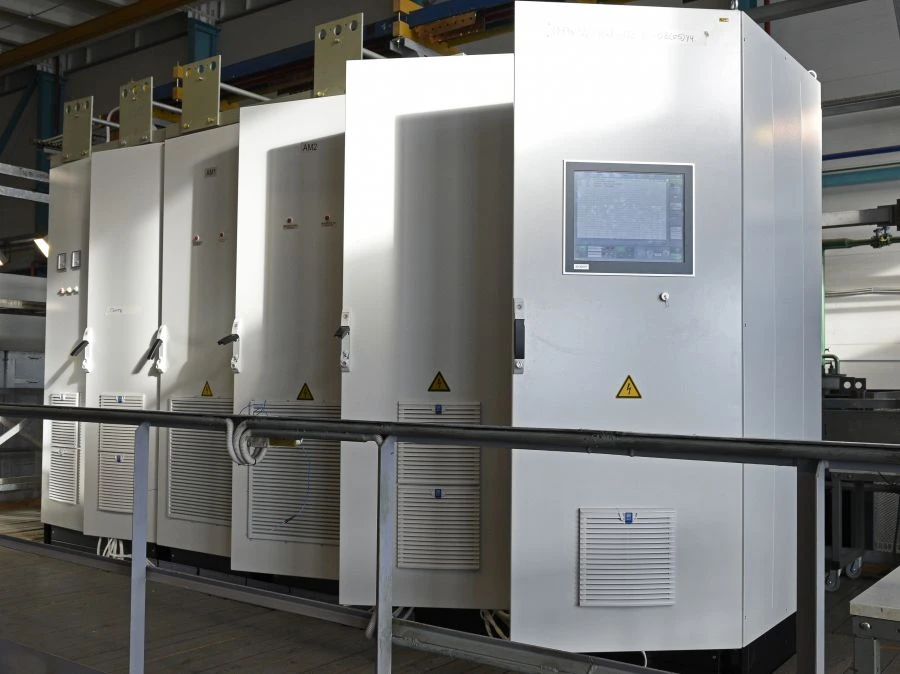

Static thyristor self-excitation system of STSN-2P-250-1250-2,5 U3 type for power units 1, 2 of CCPP-TPP "Udarnaya".

Generator Spare Parts

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Excitation system (ES) is a complex of electrical products that provides control of excitation of turbine generator (TG) by automatically regulated direct current in normal and emergency modes. The CB is made with 2 autonomous and equivalent converter-regulating channels containing thyristor converter (TC), digital automatic excitation regulator with pulse-phase control system and is able to independently provide all modes of TG operation and in excitation boosting mode. Power is supplied through a transformer connected to an independent source of 6.3 kV. Power supply from an independent source; 2-channel TP; forced air cooling type; permissible permanent excitation voltage 250 volts; permissible permanent current 1250 amperes; 2,5-fold excitation boost TG in nominal mode; U3-climatic execution and placement category according to GOST 15150-69.

Technical Specifications

Rated rotor current of turbine generator rotor	1100 A
Long-term permissible direct current of the excitation system	1250 A
Rated rotor voltage	230 V
Long-term permissible excitation system voltage	250 V
Limit steady-state current at boost, not more than	2200 A
Limit steady-state voltage at boosting, not more than	1250 V
Duration of excitation boost, not more than	20
Range of variation of voltage statism on the high voltage side of the block transformer	2...15 %
Turbine generator voltage setpoint variation range	80...110 %
Rotor current maintenance error	1 %

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
