Static DC Converter PCh-3-02-U1 Available for Import

Static DC Converter PCh-3-02-U1 for Voltage Transformation and Regulation

Static Power Converters
Manufacturer: GAMEM LLC
Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Description

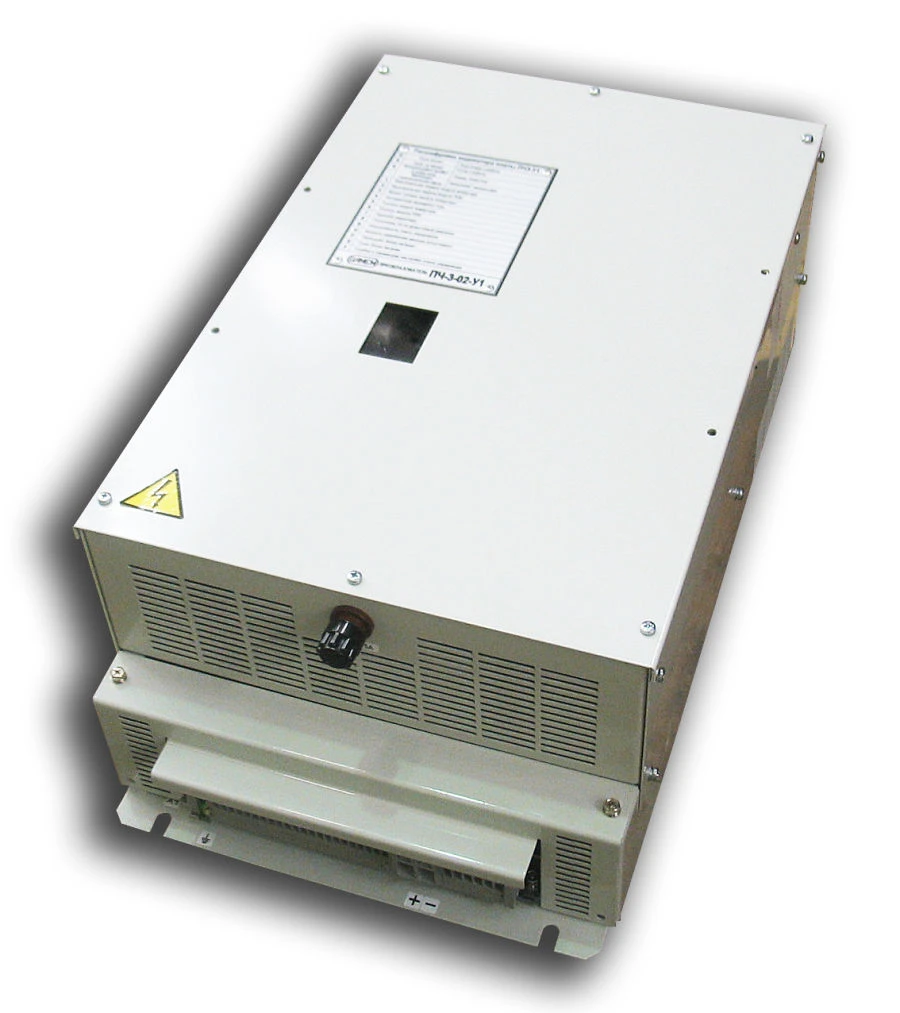

PCH-3-02-U1 is designed to convert DC voltage varying in the range of 40-310 V into 220 V, 50 Hz with three-phase output of sinusoidal form with the provision of output power up to 5.5 kVA. The converter can be used for power supply of low-power air conditioners in cabins of locomotive drivers, electric locomotives, subways, as well as for power supply of carriage consumers. The converter operability is monitored by operational and diagnostic signalling to the car control panel. The possibility of remote control using RS-485 interface is provided. There are 1382 pcs in operation.

Specifications

Overall dimensions (DxWxH)
318x200x552 mm
Weight
25 kg
Input DC voltage
110 V
Permissible input voltage deviations
+200 -60
Input voltage ripple amplitude
15 V
Input voltage ripple frequency
300...4000
Amplitude of overvoltage pulses
1500 V
Number of output channels
1
Rated line voltage
220 V
Nominal frequency
SBVVBG
Number of phases
3 pcs
Voltage regulation range
209...231 V
Frequency control range
49...51
Output power
3...3.6
Output power
5...5.5
Rated current
10 A

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
