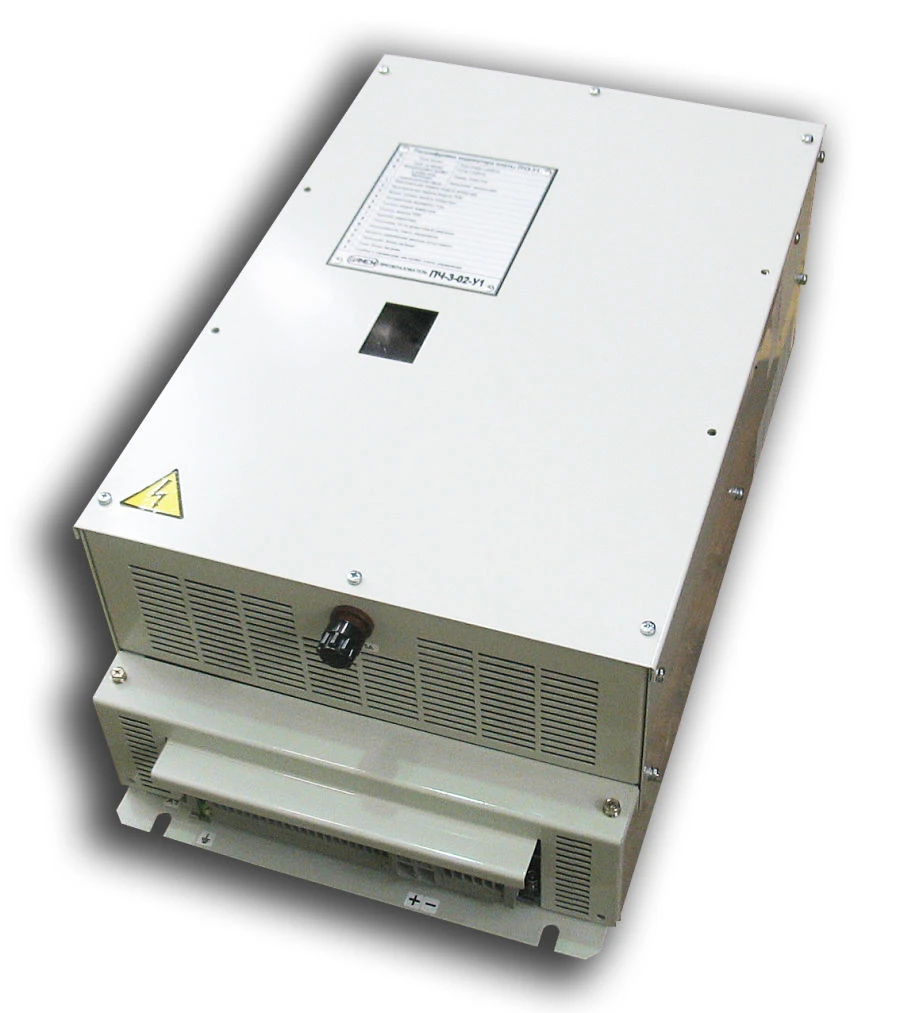

Static converter IF-3-02-U1

Static Power Converters

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

PCH-3-02-U1 is designed to convert DC voltage varying in the range of 40-310 V into 220 V, 50 Hz with three-phase output of sinusoidal form with the provision of output power up to 5.5 kVA. The converter can be used for power supply of low-power air conditioners in cabins of locomotive drivers, electric locomotives, subways, as well as for power supply of carriage consumers. The converter operability is monitored by operational and diagnostic signalling to the car control panel. The possibility of remote control using RS-485 interface is provided. There are 1382 pcs in operation.

Specifications

Overall dimensions (DxWxH) 318x200x552 mm

Weight 25 kg

Input DC voltage 110 V

Permissible input voltage deviations +200 -60

Input voltage ripple amplitude 15 V

Input voltage ripple frequency 300...4000

Amplitude of overvoltage pulses 1500 V

Number of output channels 1

Rated line voltage 220 V

Nominal frequency SBVVBG

Number of phases 3 pc

Voltage regulation range 209...231 V

Frequency control range 49...51

Output power 3...3.6

Output power 5...5.5

Rated current 10 A

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
