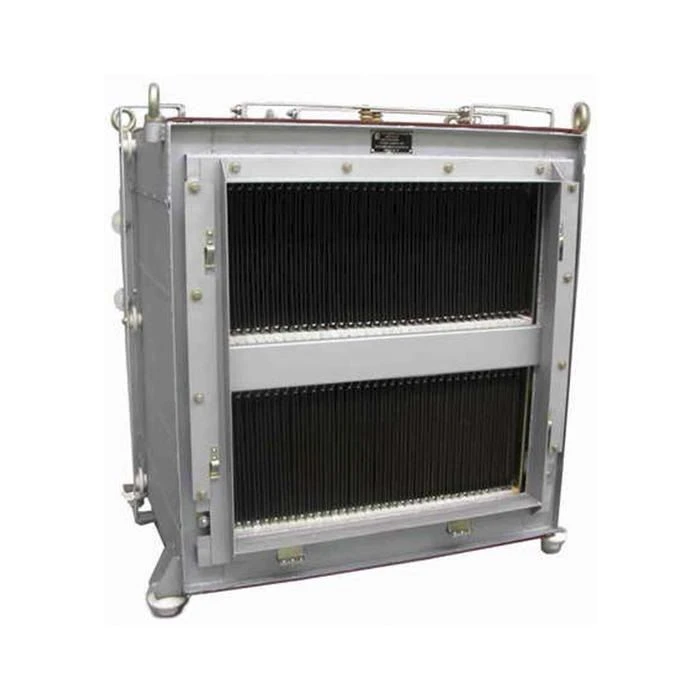

Starting and Braking Resistor Unit BPTP-63-U2 for Electric Locomotives Applications
Manufacturer:
ELECTRORECTIFIER PJSC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Available Models
Description
Block of starting and braking resistors BPTR-63-U2 is designed for installation on electric locomotives of EP2K type to limit current of traction motors in traction mode and to extinguish electric energy in rheostatic braking mode.
Specifications
Rated insulation voltage
3000 V
Weight
545 kg
Length
1135 mm
Depth
890 mm
Height
1175 mm
Resistance of section 1-2 at rated current
0.966 ohm
Resistance of section 2-3 at rated current
0.388 ohm
Resistance of section 3-4 at rated current
0.234 ohm
Resistance of section 4-5 at rated current
0.564 ohm
Resistance of section 5-6 at rated current
0.086 ohm
Resistance of section 6-7 at rated current
0.425 ohm
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
