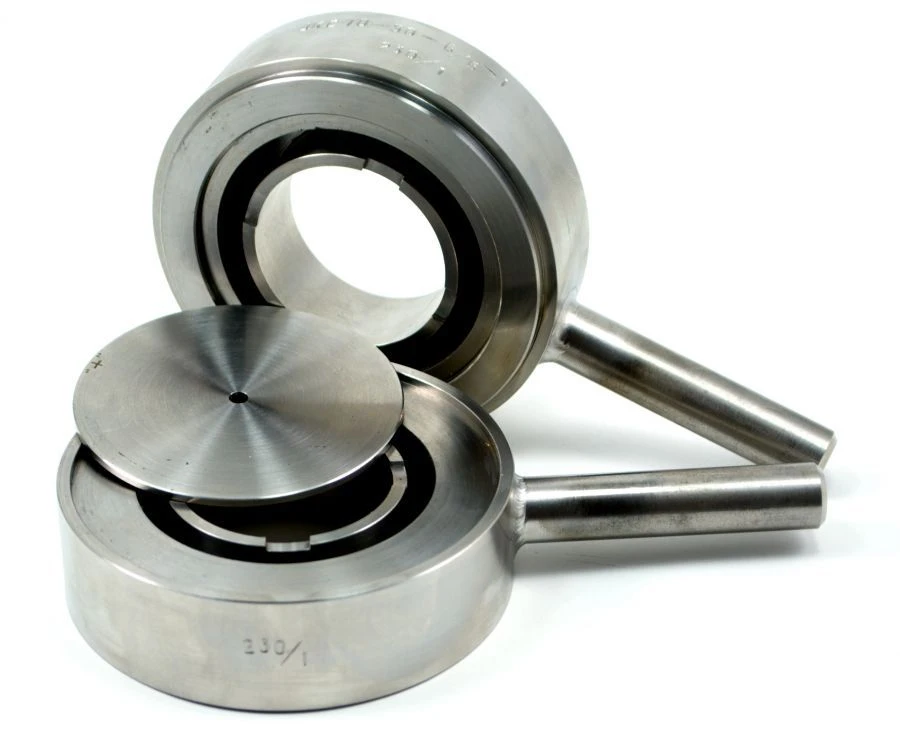

Standard chamber diaphragm DCS DN 50 - DN 500 mm
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Description
Creating differential pressure when measuring the flow of liquids, gases, water vapour by the method of variable differential pressure.
- Installed in pipeline flanges using intermediate housing-ring chambers;
- Nominal pipeline diameter from 50 to 500 mm;
- Nominal pressure in the pipeline up to 10 MPa;
- Angular method of pressure sampling
In the standard version it is manufactured with one pair of pressure tapping connections and provides for welding of impulse lines with diameter of 16 mm.
- Installed in pipeline flanges using intermediate housing-ring chambers;
- Nominal pipeline diameter from 50 to 500 mm;
- Nominal pressure in the pipeline up to 10 MPa;
- Angular method of pressure sampling
In the standard version it is manufactured with one pair of pressure tapping connections and provides for welding of impulse lines with diameter of 16 mm.
Specifications
Nominal pressure
Up to 10 MPa
Nominal diameter
50 to 500 a
Assigned service life
20 a
Part materials
Steel 12?18?10? GOST 5632; Steel 20 GOST 1050; Steel 09G2S GOST 19281; Paronite GOST 481
Operating medium
Liquid, steam, gas
