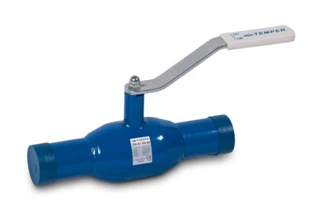

Standard bore ball valve 282 NP welded, 282 20 065

Ball Valves

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Available Models

Standard bore ball valve 282 NP welded, 282 20 040 Standard bore 282 NP welded ball valve, 282 20 050 Standard bore ball valve 282 NP welded, 282 20 100 Standard Bore Ball Valve 282 NP Welded, 282 20 015 Standard bore ball valve 282 NP welded, 282 20 080

Description

Standard bore 282 welded ball valve

Connection type:

welded/welded

Working Environment:

District heating networks, oil products, fuels and lubricants,
other liquids free from abrasive contaminants.
Natural gas, liquefied petroleum gas, gaseous media not aggressive towards
valve materials.

Specifications

Airtightness class Class "A" GOST R54808-2011

Diameter 65 mm

Nominal pressure 25 MPa

Construction length 300 mm

Connection type Welded

Aisle Standard

Flange for mounting the actuator without flange

Execution ordinary

Minimum temperature, up to -40 °C

Maximum temperature, up to 200 °C

Service life, at least 25 a

Warranty period 3 a

Warranty period, cycles 10000

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
