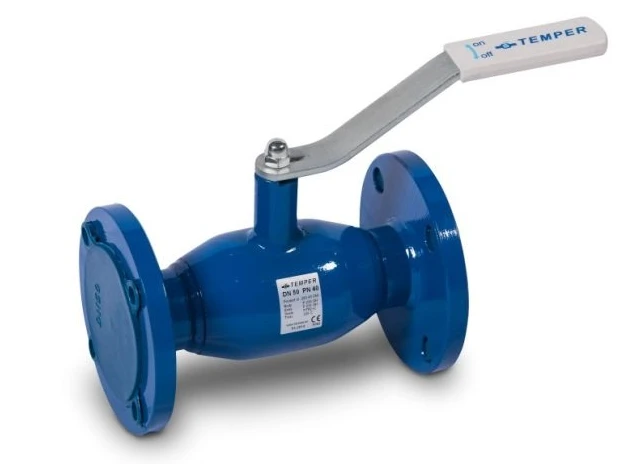

Standard bore 284 flanged ball valve PN25, 28420100

Ball Valves

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Available Models

Standard bore ball valve 284 flanged PN25, 28420080. Standard Bore Ball Valve 284 Flanged (PN 25), 28420065.

Description

Connection type:

flanged

Working Environment:

District heating networks, oil products, fuels and lubricants,
other liquids free from abrasive contaminants.
Natural gas, liquefied petroleum gas, gaseous media not aggressive towards
valve materials.

Specifications

Airtightness class Class "A" GOST R54808-2011

Diameter 100 mm

Nominal pressure 25 MPa

Construction length 300 mm

Connection type flanged PN25

Aisle Standard

Flange for mounting the actuator without flange

Execution ordinary

Enclosure materials Steel 20/09G2S/12Cr18Ni10T

Minimum temperature, up to -40 °C

Maximum temperature, up to 200 °C

Service life, at least 25 a

Warranty period 3 a

Warranty period, cycles 10000

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
