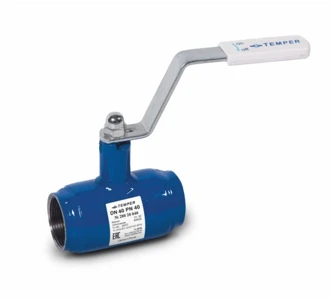

Standard bore 280 socket ball valve, 28020080

Ball Valves

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Available Models

Standard bore 280 socket ball valve, 28020065 Standard bore 280 socket ball valve, 28020020 Standard bore 280 socket ball valve, 28020015 Standard bore 280 socket ball valve, 28020040

Description

Connection type:
threaded/threaded

Working Environment:

Heat water, oil products, petroleum products, fuels and lubricants, gaseous and other working media that are not aggressive to the materials of valve parts.

Specifications

Airtightness class Class "A" GOST R54808-2011

Diameter 80 mm

Nominal pressure 25 MPa

Construction length 200 mm

Weight 6.14

Connection type coupling

Aisle Standard

Flange for mounting the actuator without flange

Execution ordinary

Enclosure materials Steel 20/09G2S/12Cr18Ni10T

Minimum temperature, up to -40 °C

Maximum temperature, up to 200 °C

Service life, at least 25 a

Warranty period 3 a

Warranty period, cycles 10000

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
