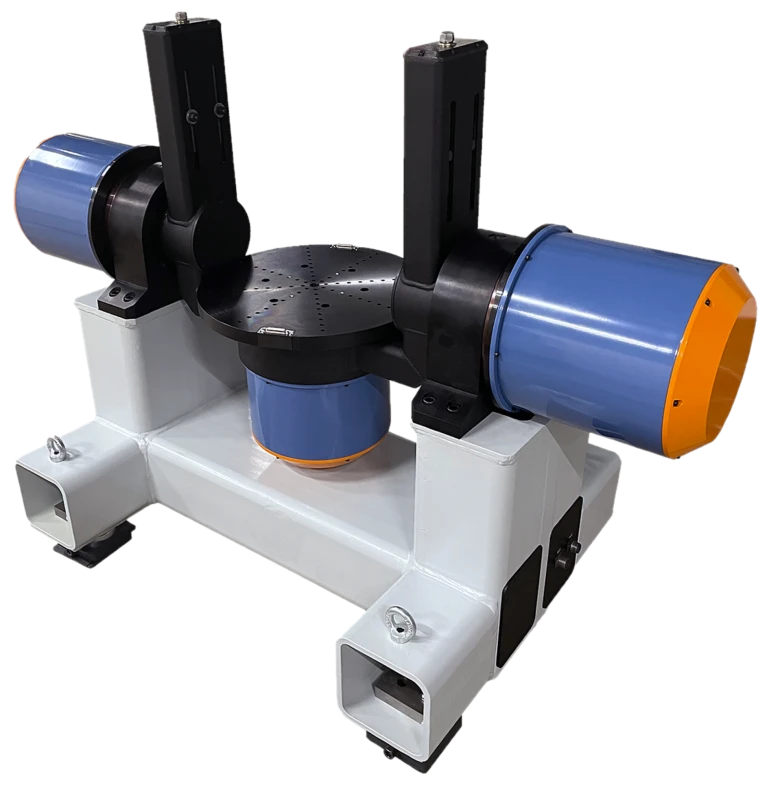

Stand SDA-2.50

High-precision two-axis rotary stand is designed for calibration and testing of gyroscopic systems of different type, accuracy class and purpose, weighing up to 50kg.

-For convenient installation of the object on the plate, a mechanical arrester is provided, which allows fixing the external axis of rotation of the stand in any position
-To increase the stability of angular velocity, the stand is equipped with a system of balancing accuracy
-The stand is equipped with a dynamic braking system in case of emergency stop
-Mounting of the stand is carried out on a foundation using a base plate. The bench is adjusted in the plane of the horizon with the help of special adjustable supports.
-Connection to the power supply system is carried out according to 5-wire scheme (3L+N+E).
-Power supply voltage 380 V (10%), frequency 50-60 Hz
