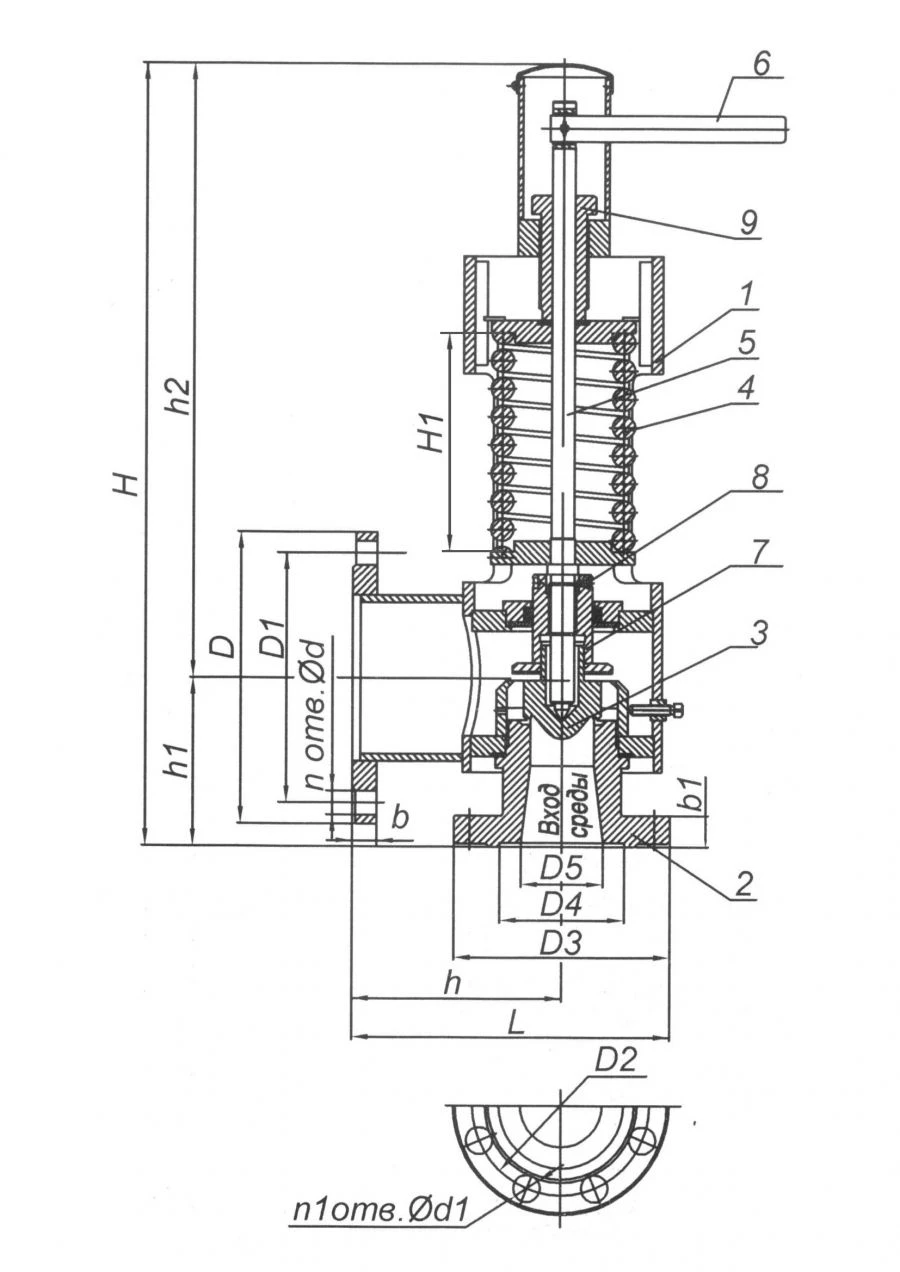

Spring Safety Valve T-31MS-1 for Pressure Release

Available for Import

Spring Safety Valve T-31MS-1 for Automatic Pressure Release Applications

Safety Relief Valves

Manufacturer:TKZ LLC

Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

Spring loaded safety relief valve T-32MS-2 Spring loaded safety relief valve T-132MS Spring loaded safety relief valve T-32MS-3 Spring loaded safety relief valve T-31MS-3 Spring loaded safety relief valve T-31MS-2

Spring loaded safety relief valve T-32MS-1 Spring loaded safety relief valve T-131MS

Description

Safety spring valves with damper are designed for automatic release of excess medium into the atmosphere when the set pressure is exceeded.

Specifications

Weight

48 kg

Material

Steel 20

Climatic version

UHL3

Operating medium

vapor

Nominal diameter

SBVVBG mm

Working pressure

3.5...4.5 MPa

Maximum temperature

425...350 °C

Name

Safety valve T-31MS-1

Assignment

Designed for automatic release of excess medium into the atmosphere when the set pressure is exceeded.

Pressure rating

6.3 MPa
