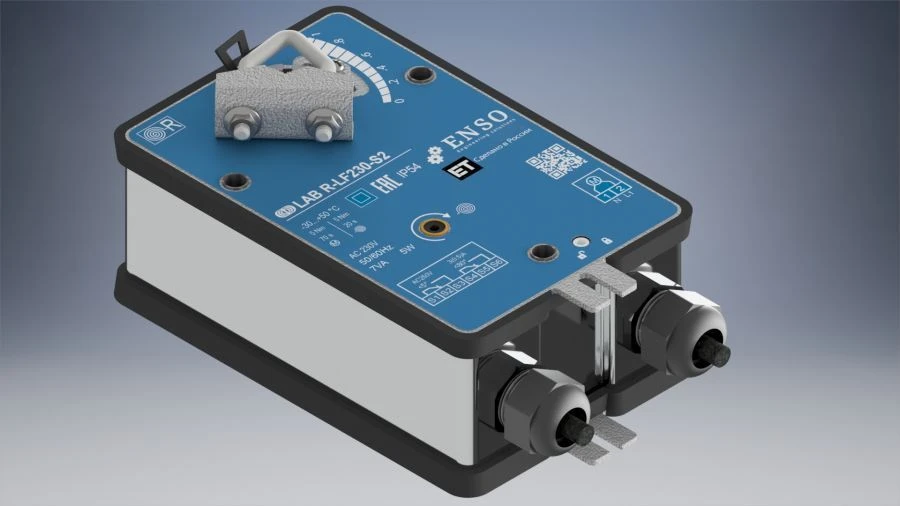

Spring-Return Electric Actuator for Air Dampers - LAB R-LF230 for Ventilation Systems

Electric damper actuator with return spring and damper position limiter is designed for air dampers of general exchange supply and exhaust ventilation and air conditioning. Design of the gear mechanism only on metal gears. Compatible with all ACS systems (e.g.

Bolid, Gefest, Rubetek). There is a mechanism of manual control. Main characteristics of the actuator:

1. electric actuator with return spring with possibility of manual control with fixation of damper position.
2. A mechanical stop-regulator of the damper position angle is installed on the body.
3. Power supply from the mains 220 V.
4. There is no auxiliary switch.
5. Torque - 5 Nm.
6. Turning time - motor <70 sec; spring <20 sec.
7. Metal housing with protection degree IP54, it is possible to execute the actuator in explosion-proof enclosure according to IP65.
8. The actuator is not reversible.
