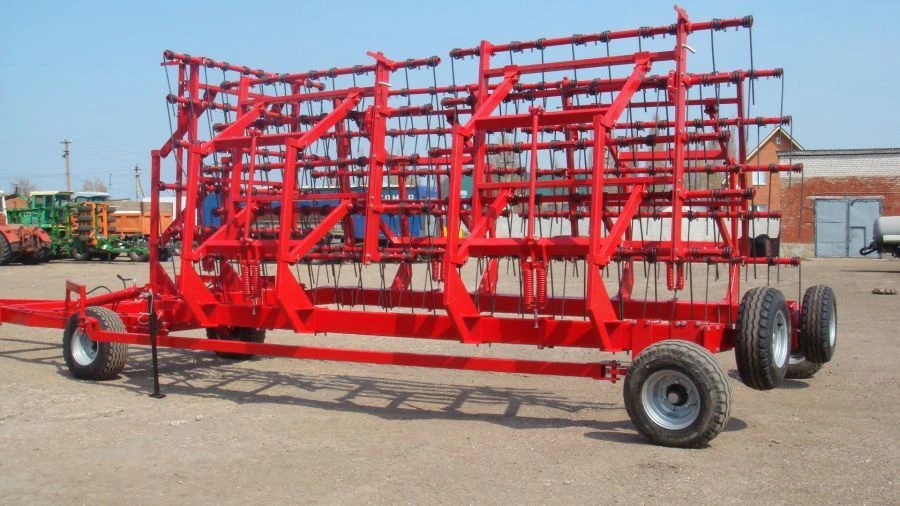

Spring harrow BP-15

The spring harrow is designed for various operations in no-till, minimum and standard farming systems. It is used for early-spring harrowing of winter and winter crops for moisture retention, pre-sowing soil preparation, post-sowing and post-emergence harrowing, autumn stubble and tillage, uniform distribution of mineral fertilisers and crop residues with their partial incorporation into the soil. Granular fertilisers and herbicides can be applied using the attachments.
The harrow consists of front and side beams and a hitch (drawbar).
The drawbar is fitted with a drawbar eye, hydraulic cylinders, hitching mechanism and wheel bracket.
Sections with working bodies and wheel brackets are mounted on the front and side beams.
The front beam is connected to the side beams by a cross member, which allows the product to unfold as an assembly and rotate for lowering and raising the implement.
