Sports complex-002

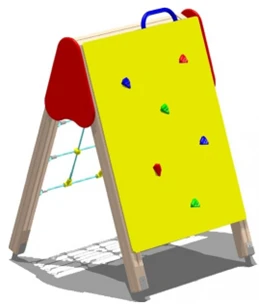

Children's sports complex is designed for children aged from 4 years. Bearing poles of the complex should be made of a bar with a cross-section of 100x100 mm. At the bottom of the post should end with a metal painted buttress with a cross-section of 42 mm, which is concreted into the ground. The children's sports complex consists of two inclined walls. One is a climber's wall made of 24 mm thick waterproof painted plywood with professional climbing grips. The other is a net made of polypropylene rope with a cross-section of 16 mm, connected with each other by plastic fasteners of oval shape. The sports complex is also equipped with a 33 mm metal handrail. The corners of the joints of the supporting posts of the structure are covered with 15 mm thick, rounded, moisture-resistant painted plywood overlays. Wooden parts should be thoroughly sanded, primed and painted with water-dispersion acrylic enamel.
