SPIN complex (with versions of "SPIN station" product)

Gas and Smoke Analysers

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

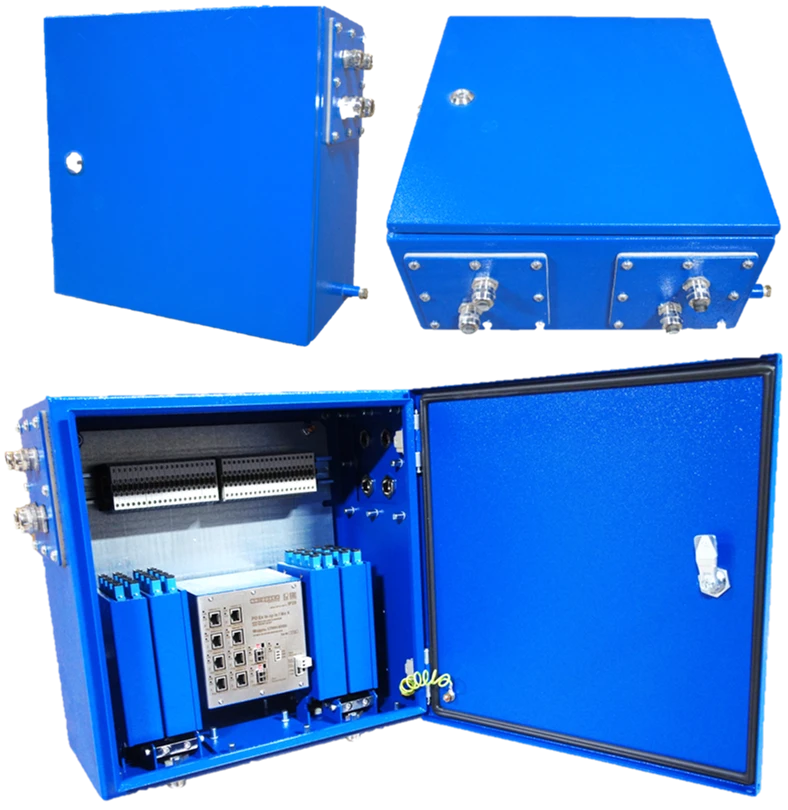

The SPIN complex is designed for transmission of heterogeneous digital data in the "Mikon III" System, other ACS, IP television, communication systems, etc. in normal and emergency conditions and in explosive atmosphere in underground mine workings, including dangerous by gas (methane), dust and sudden emissions. High-speed communication is provided by Ethernet LX (FOCL) and DSL technologies (mine communication cables), low-speed field communication - by RS-485 technology (mine communication cables).In hazardous areas, SPIN communication stations powered from intrinsically safe power supplies are used. In the LUT communication station, the lines of the external high-speed communication trunk are connected via converters to an Ethernet switch, which forms several Ethernet ports to which LUT modules (interface converters, etc.) are connected.

Specifications

Technology of transmission over copper conductors of trunk level DSL

Technology of transmission over optical lines of trunk level Ethernet 100BASE-LX and/or Ethernet 1000BASE-LX

Local transmission technology Ethernet1000BASE-TX

Field level transmission technology RS-485

Types of Ethernet switches Managed

Number of Ethernet ports in the communication station, not less than 183836:Number of Ethernet ports in the communication statio 4 pc

Number of Ethernet 1000BASE-LX ports in the communication station, not more 2 pc

Number of DSL ports in the communication station, not more 2 pc

Number of RS-485 ports in the communication station, not less 4 pc

Overall dimensions of the communication station, modules, not more, mm 250x140x130

Weight of communication station, modules, max. 50.7 kg

Average MTBF 10000

Assigned, average service life 10.5 a

Protection degree of communication station, modules according to GOST 14254, not worse than IP20

Level and type of explosion protection according to GOST 31610.0 RO Ex ia op is I Ma X

Explosion protection certificate EAEU RU C-RU.AA87.V.00403/20

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
