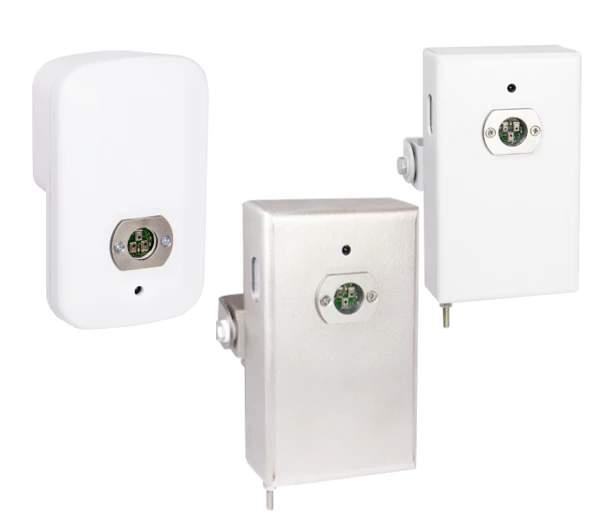

Spectron-801-Exm fire flame detector

Fire Alarm Detectors

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Available Models

Spectron-801-Exm-M fire flame detector

Description

3-IC fire flame detector Spectron series 801-Ehm. Immunity category - 1 (Maximum) super interference immunity to heavy optical interference. Recognises manual arc and argon welding as spurious interference. Applicable in open areas and in enclosed spaces with harsh operating conditions. Temperature range from - 55 to + 75°C. Viewing angle 90°. Flame detection range - 25 m at TP5 and TP6. 4 modes of operation with different range and time of flame detection. There is a function of transmitting a fault signal, tested with a test light, but only with a 4-wire connection. Detectors can be linked to a specific lantern by means of an identification code. IP66/IP68. Explosion protection marking. PB Ex mb I Mb X/1Ex mb IIC T6 Gb X/Ex mb IIIC T85ºC Db X. Housing - ABS-plastic. Overall dimensions (HxWxG) 158x84x73 mm.

Specifications

Weight 200 g

Overall dimensions 158x84x73 mm

Viewing angle Flat grinder, Specialised grinder

Spectral sensitivity 3-IC.

Degree of protection of the shell, IP 68

Operating temperature range 75 °C

Operating temperature (55);+75 °C

Designation FIRE FLAME DETECTOR MULTIBAND 4-IK IP-330-3-1

Assignment Recommended for fire alarm systems and fire extinguishing systems

Operating temperature range 75 °C

Explosion protection marking PB Ex mb I Mb X/ 1Ex mb IIC T6 Gb X/ Ex mb IIIC T85ºC Db X

Housing material ABS plastic

Power supply voltage 12...32 V

Sensitivity levels Grade 1

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
