Spectron-601-Exi-C Flame Detector - Infrared/Ultraviolet Technology
All Categories

Categories

Language

Quick Links

WhatsApp Inquiry

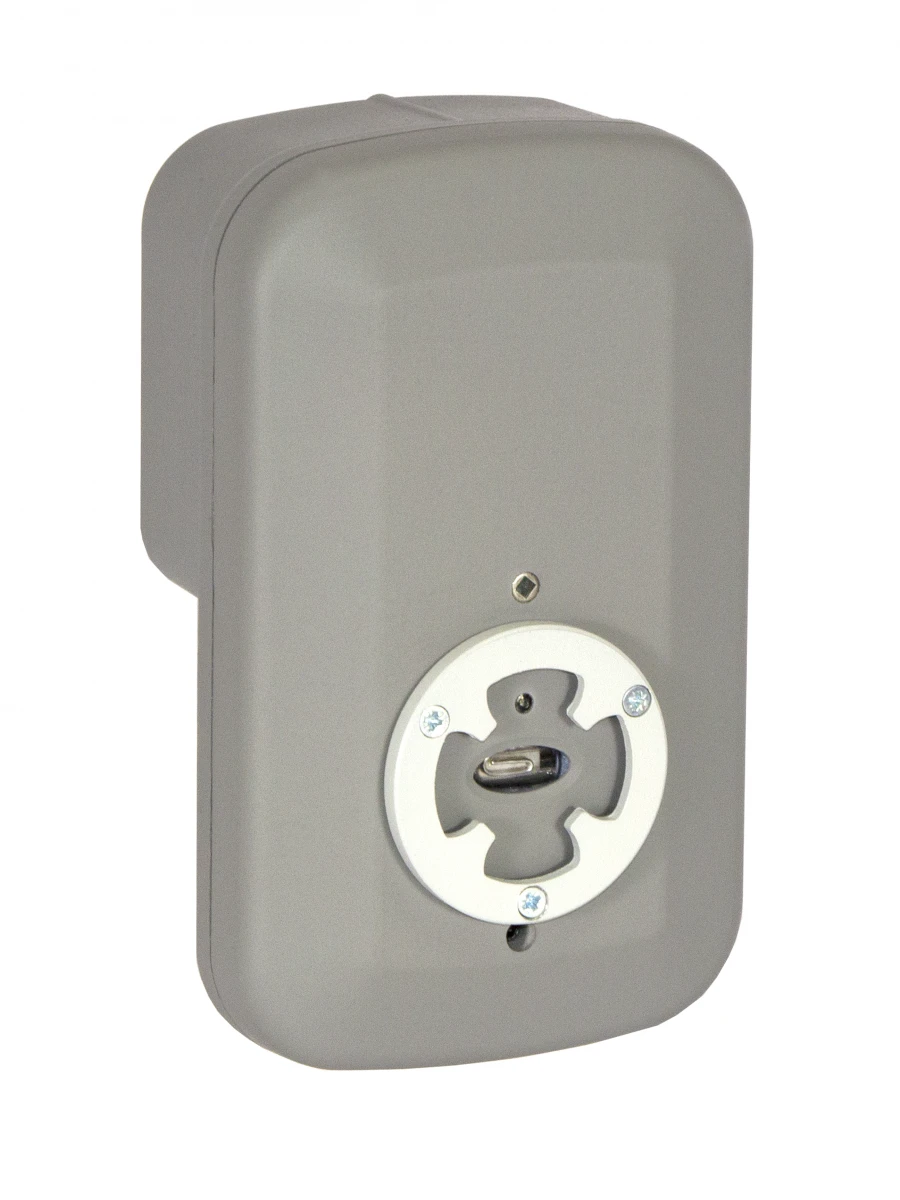

Spectron-601-Exi-C Infrared/Ultraviolet Flame Detector Available for Import

Spectron-601-Exi-C Infrared/Ultraviolet Flame Detector for Fire Safety

Fire Alarm Detectors
Manufacturer: SPEKTRON LLC
Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Description

The Spectron-601-Exi-C is a fire detector flame infrared/ultraviolet (IR/UV) ranges. The detector housing is made of high-strength ABS plastic and has a degree of protection IP68 from the external environment. It is made in accordance with the requirements for explosion-protected equipment with the type of explosion protection "intrinsically safe circuit ia", having the level of explosion protection "especially explosion-proof". It can be used in hazardous areas of classes "0", "1", "2", "20", "21" and "22" of enclosed spaces and outdoor installations.

Specifications

Weight
200 year
Overall dimensions
84x158x73 mm
Viewing angle
Flat grinder, Specialised grinder
Minimum response time
6-22
Degree of protection of the shell, IP
68
Operating temperature range
75 °C
Operating temperature
(55);+75 °C
Designation
IR/UV MULTI-BAND FLAME DETECTOR IP329/330
Assignment
Recommended for use in fire alarm systems and fire extinguishing systems in closed facilities and open installations
Explosion protection marking
0Ex ia IIC T6 Ga X / Ex ia IIIC T85ºC Da X
Housing material
ABS plastic
Power supply voltage
9...26 V
Sensitivity levels
Grade 1

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
