Specialised boring machine SRS-4M
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Description

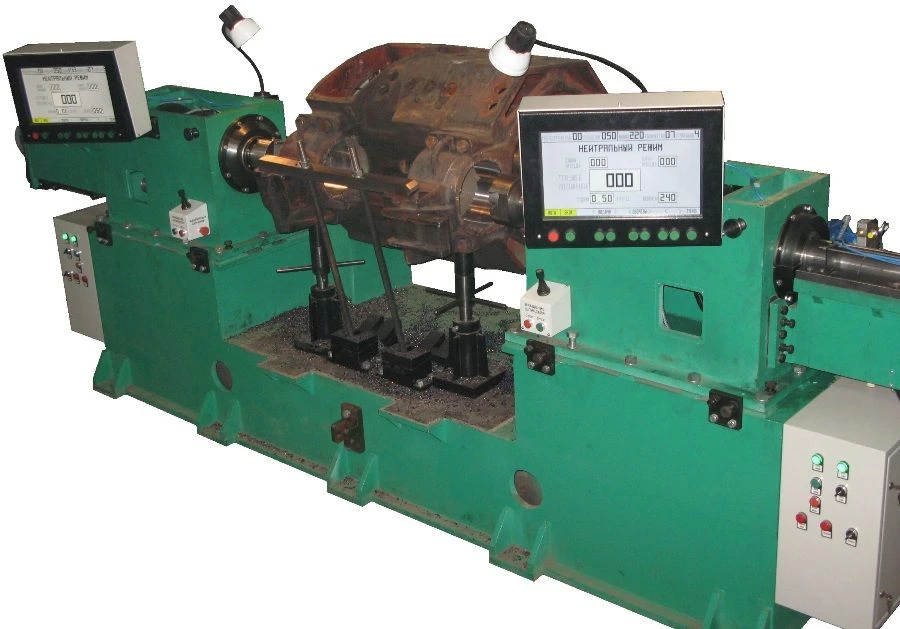

The SRS-4M machine of class "H" (normal accuracy) is a non-standard universal technological equipment and is designed for boring of motor-axle necks (MOG) and motor-axle bearings (MOP) of practically any traction electric motors of railway transport.
Traction motors during boring of MOGs are installed on the machine both assembled and their hulls using special technological tooling simulating the armature shaft.
When boring motor-axial bearing shells (MOS), traction motors are installed on the machine in assembled form..
Traction motors during boring of MOGs are installed on the machine both assembled and their hulls using special technological tooling simulating the armature shaft.
When boring motor-axial bearing shells (MOS), traction motors are installed on the machine in assembled form..
Specifications
Type of product according to PP RF 616
Universal horizontal boring machines, with CNC, CNC)
Length
5416 mm
Width
1320 mm
Height
1735 mm
Power consumption
9 kW
Weight
7000 kg
Assignment
Boring of motor-axle necks (MOG) and motor-axle bearings (MOP) of traction electric motors (TED) of railway transport.
Type
Specialized
Types of boring traction motors
TE-006, ED-118A, ED-118B, NB-418, NB-418K6, NB-514, TL-2K, TL-2K1
Technological bases for installation of assembled TEDs on the machine
Anchor shaft ends or one end of an anchor shaft with a special processing spacer on the opposite side
Technological bases for installation of TED hulks on the machine
Внутренние поверхности горловин остова под подшипниковые щиты с использованием специальной технологической оснастки для каждого вида ТЭД
Spindle rotation drive
electromechanical
Cutting head feed drive
electromechanical
Number of spindle bosses
2 pc
Spindle spool bosses
independent
Installed working spindle speeds
240
Installed working feeds
0,06; 0,08; 0,1; 0,12; 0,15; 0,2
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
