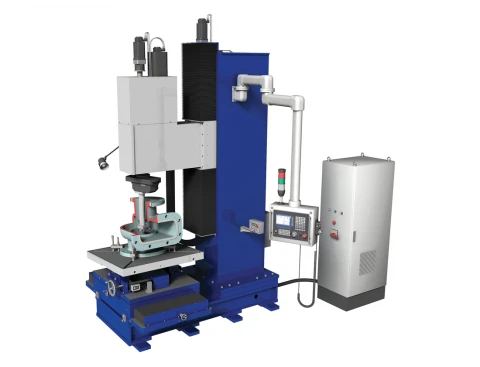

Special Vertical Boring Machines GAKS-L-7 for Precision Processing Applications

Metal Boring Machines

Manufacturer: REMARM LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The vertical boring special machines GAKS-L-7 are designed for blade machining of sealing surfaces of bodies and wedges of steel and cast iron flanged wedge gate valves for pneumatic and hydraulic testing during adjustment. Processed products: wedge gate valves DN 50...800 mm (machine GAKS-L-7-50/800S); wedge gate valves DN 100...1200 mm (machine GAKS-L-7-100/1200S); wedge gate valves DN 200...1400 mm (machine GAKS-L-7-200/1400S). The accuracy class of the machines according to GOST 8-82 is H.

The machines are equipped with CNC, which monitors the machine operation and controls the processes of tool feeding and machining of parts. The machines provide processing of flanges manufactured in accordance with GOST 33259-2015, BS10:1962, ASME/ANSI B16/5. Tilt-coordinate table with adjustable tilt allows machining of sealing surfaces of pipeline valves with an angle from 0 to 12º.

Specifications

Type of product according to PP RF 616

Coordinate boring machines

Working table surface, mm (GAKS-L-7-50/800C)

1100x1100

Surface of the working table, mm (GAKS-L-7-100/1200C)

1700x1700

Working table surface, mm (GAKS-L-7-200/1400C)

1900x1900

Angle of table inclination from horizontal, deg.

±12,5

Accuracy of table tilt angle, sec.

±10

Faceplate speed, rpm

50...250

Spindle drive motor power, kW (GAKS-L-7-50/800S)

9,2

Spindle drive motor power, kW (GAKS-L-7-100/1200C)

11,0

Power of electric motor of spindle drive, kW (GAKS-L-7-200/1400S)

13,0

Weight, not more, kg (GAKS-L-7-200/1400C)

20000

Weight, not more, kg (GAKS-L-7-100/1200C)

11000

Weight, not more, kg (GAKS-L-7-50/800C)

7500

Weight of machined part, max, kg (GAKS-L-7-200/1400S)

4900

Weight of machined part, max, kg (GAKS-L-7-100/1200C)

4000

Weight of workpiece, max, kg (GAKS-L-7-50/800S)

2050

Flange diameter, max, mm (GAKS-L-7-200/1400C)

1700

Flange diameter, max, mm (GAKS-L-7-100/1200C)

1500

Flange diameter, max, mm (GAKS-L-7-50/800C)

1075

Construction length of gate valve, max, mm (GAKS-L-7-200/1400C)

1600

Construction length of gate valve, max, mm (GAKS-L-7-100/1200C)

1400

Construction length of gate valve, max, mm (GAKS-L-7-50/800S)

1000

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
