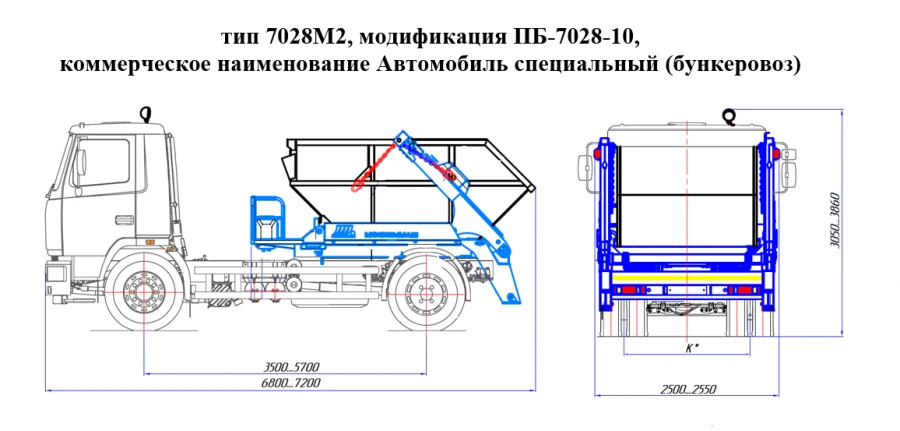

Special vehicle (bunker truck) PB-7028-10 on chassis MAZ 5340 in modifications 5340C2, 534025.

Municipal Road Vehicles

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

gantry type loading and unloading equipment for loading, transporting and removing removable hoppers with loads of various purposes

Technical Specifications

Type of product according to PP RF 616	7028?2
Type of product according to PP RF 616	Garbage trucks
Machine type	7028?2
Base chassis type	MAZ 5N32
Engine type	Four-stroke diesel engine
Type of garbage truck equipment	gantry-type material handling equipment
Wheel arrangement	4x2/rear
Engine type	Four-stroke diesel engine
Machine type	7028?2
Wheel arrangement	4 x 2 / rear
Base chassis type	MAZ 5N32
Clutch (brand, type)	Sachs, Donmez, MF-395, MFZ-430; YAMZ-183, 184, friction, dry, single disk
Transmission (make, type)	ZF, 9S1310TO; 9S1315TO; EATON, ESO12209;Shaanxi Fast Gear Co., 9JS135A; 9JS135TA; 9JSD135A; 9JSD135TA; 9JS150F; 9JSD150F; 9JS180A; 9JS180TA; 9JSD180A; 9JSD180TA; 9JS200T; 9JSD200T; 9JSD200T; 9JSDX200T; 9JS200A; 9JSD200A; 9JSDX200A; 9JSD200TA; 9JSD200TA; 9J
Suspension	dependent, spring-loaded, with hydraulic telescopic shock absorbers, with or without transverse stability stabilizer
Suspension	dependent, spring-loaded, with or without hydraulic telescopic shock absorbers, with or without transverse stability stabilizer or dependent, pneumatic with hydraulic telescopic shock absorbers, with or without transverse stability stabilizer
Steering (description)	Power assisted
Steering mechanism (type)	steering mechanism of screw-ball nut-rack-sector type; MAZ: 64221-3400008-02, 64221-3400010, 64221-3400010-10, 64229- 3400008, 64229-3400010-01 or SNKF: 453461.700, 453461.700-35, 453461.720-20, 453461.400, 453461.400-10, 453461.400-40 or ZF, BOSCH:
Brake systems	dual-circuit, pneumatically actuated, with separation into axle circuits, ABS, with or without ESP (ESC) stability system, disc or drum brakes on all wheels.
Brake systems	One of the service brake system circuits or parking brake system
Brake systems	drive from energy accumulators to rear axle wheel brakes
Brake systems	газодинамический тормоз, установленный в выпускной системе двигателя; и/или компрессионное торможение двигателем; может устанавливаться ретардер
Vehicle equipment	emergency call device with automatic activation in case of overturning; maximum speed limitation device (maximum speed limitation is performed by electronic engine control system) optional: self-contained
Type	7028?2
Compression ratio	17.5
Compression ratio	18
Type	7028?2
Power supply system (type)	pressurized fuel injection
Vehicle length	6800…7200 mm
Vehicle width	2500…2550 mm
Vehicle height	3050…3860 mm
Base	3500…5700 mm
Front/rear wheel track	2000…2070 / 1790…1840 mm
Vehicle kerb weight	8700…9700 kg
Technically permissible maximum mass of the vehicle	16000…22000 kg
Technically permissible maximum mass on each axle of the vehicle, starting from the front axle	6000…9000 kg
Technically permissible maximum mass on each axle of the vehicle, starting from the front axle	10000…13000 kg
Technically permissible maximum mass of a road train	- kg
Maximum trailer weight	trailer towing is not provided kg
Internal combustion engine (make, type)	YaMZ, 53653; YaMZ, 53623; WEICHAI, MAZWeichai, WP7.270E51; turbocharged four-stroke diesel engine with intercooled air.
Number and arrangement of cylinders	6, inline
Cylinder displacement	6650
Cylinder displacement	7470
Maximum power, kW (min-1),	175(2300)
Maximum power, kW (min-1),	200,7(2300)
Maximum power, kW (min-1)	194(2100)
Maximum torque, N?m (min-1)	1044 (1300…1600)
Maximum torque, N?m (min-1)	1161 (1300…1600)
Maximum torque, N?m (min-1)	1160 (1200…1600)
Fuel	diesel fuel
Control unit (marking)	Bosch, EDC7UC31, 0 281 020 111; ITELMA, MD22, 3012.3765 001-01
Control unit (marking)	Bosch, WPEDC7
Fuel injector (type, marking)	Bosch, CR/CP3HS3/ L110/30-789S, 0 445 020 110
Fuel injector (type, marking)	Bosch, WPCPN2
Nozzles (type, marking)	Bosch, 0 445 120 178
Nozzles (type, marking)	Bosch, WPCRIN2
Air blower (type, marking)	NPO "Turbotekhnika", TKR 80; YaMZ, C21 xxx xx
Air blower (type, marking)	Honeywell, Garrett, GT35
Air filter (type, marking)	dry type, with paper filter element, Avtodizel (YaMZ), Remiz: 8421- 1109010, 8421-1109010-21, 8421-1109010-24, 8421-1109010-25, 8421-1109010-26; MAZ, Remiz: 238N-1109010, 238N-1109010-20, 238N-1109010-21, 238N-1109010-26
Air filter (type, marking)	Dry type, with paper filter element, MAZ, Remiz: 238N1109010, 238N1109010-20, 238N1109010-21, 238N1109010-26
Exhaust gas exhaust and neutralization system	with single silencer and exhaust gas neutralization system: Selective Catalytic Reduction (SCR) system
Neutralizers (marking) - 1 stage	muffler
Silencers (marking) - 1 stage	ROSSKATavto (RKa), Dinex Rus (DINEKS), MobilGazService (MGS): 5365- 1201010-01, 5365.1201010-02, 59345, 5365.1201010-03, 5365-1201010-21, 5365.1201010-22, 59346, 5365.1201010-23
Silencers (marking) - 1 stage	WEICHAI: WPSCR002 (610800220244, 610800220216, 1000971875)
Transmission	mechanical

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
