Special Trailer Modification 85311A for Heavy-Duty Transport and Dumping

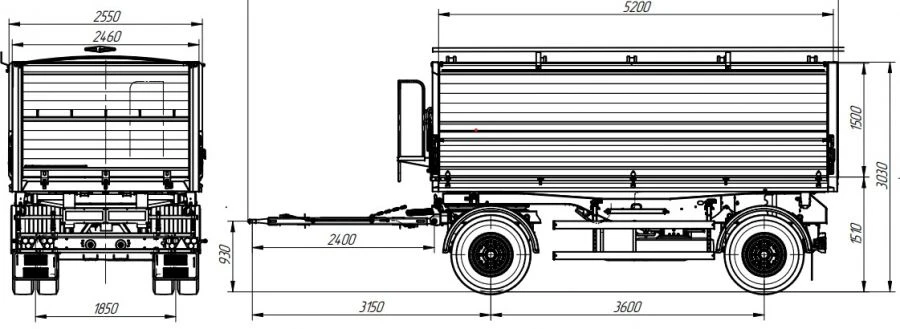

Special trailer, modification 85311A, 2-axle, 2-slope osnovka (or single-slope osnovka), tipping platform 5200x2420x1500mm, g / d 15,0t, V-18,9 cu.m. side unloading 45 degrees and partially back to 30 degrees. Front board - one-piece, rigidly attached to the base, hinging of upper boards - upper, lower - lower, lower boards open at 120 degrees.

Side, rear and front sides of the platform are 3 mm thick, platform base is 4 mm thick, metal 09G2S. Rear wall is one-piece, on the upper hinge. Side locks are mechanical, manually opened.

Side lower boards are equipped with a mechanism to facilitate closing. Without awning frame, without winding device, without awning, without platform and ladder..
