Special trailer, modification 85310B

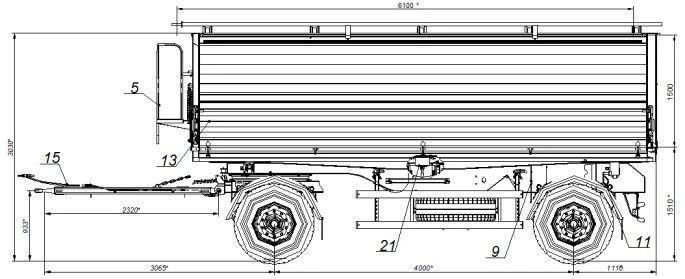

Trailer special 85310V, 2-axle, 2-slope osnovka (or single-slope osnovka), tipping platform 6100x2420x1500mm, g / d 15,0t, V-22 cu.m. side unloading 45 degrees and partially back to 30 degrees. The front board is one-piece, rigidly fixed to the base, the hinge of the upper boards is upper, the lower boards are lower, the lower boards are opened at 120 degrees. Thickness of side, rear and front boards is 3 mm, platform base is 4 mm.
The rear board is one-piece, on the upper hinge. Side locks are mechanical, manually opened. Side bottom boards are equipped with a mechanism to facilitate closing.
Without awning frame, without winding device, without awning, without platform and ladder. .
