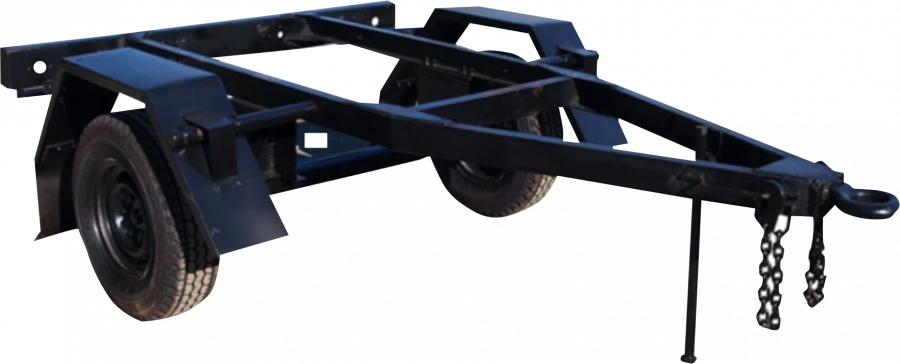

Special Chassis Trailer SHAO 8331.3 for Reliable Transportation Solutions

Medium Duty Trailers

Manufacturer: UZSNGU "ISKRA" LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The trailer special SHAO model 8331.3, hereinafter referred to as "the trailer", is designed for operation with vehicles having a drawbar hitch in accordance with GOST 2349, electric leads in accordance with GOST 9200, devices for connection of trailer safety chains and whose technical specification allows towing trailers. The gross chassis weight must not exceed that specified in the technical specification of the vehicle. The trailer may be operated at a speed not exceeding 25 km/hour.

The chassis is manufactured in climatic version U1 and is designed for operation in field conditions at ambient air temperature from minus 40°? to plus 45°? and relative humidity not exceeding 80% at 20°?.

Permissible deviation of the curb weight of the loaded trailer - plus 3%, the lower limit is not limited.

Specifications

Length

3300 mm

Width

1850 mm

Height

595 mm

Type of trailer

special

Axle load capacity

8 t

Base machine type

A vehicle with a towing hitch according to GOST 2349

Front track

1650 mm

Suspension

Spring steel, on 2 leaf springs

Maximum gross chassis speed (with welding machine or equipment installed)

Installed service life before the first major overhaul under the first category of operating conditions

150

Weight of mounted equipment, not more

1400 kg

Chassis weight, not more

400 kg

Weight distribution of the mounted equipment on the coupling ball bar

100 kg

Weight distribution of the mounted equipment on the road through the wheel tires

1300 kg

Disk wheels

GAZ-53, PAZ 3301

Number of mounting studs for each wheel

6 pcs

Tire size

Nominal tire pressure at maximum load

3,5

Number of main wheels

2 pcs

Number of spare wheels

1 pcs

Type

SHAO

Climatic version

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
