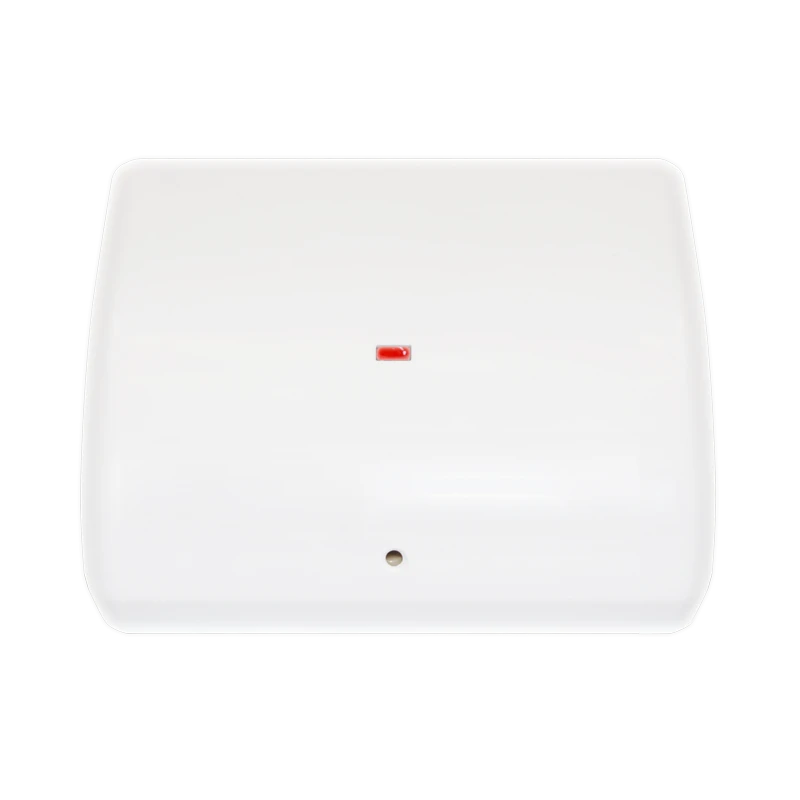

Sound Addressable Surface Security Detector "C2000-ST version 02" for Glass Break Detection

The device is designed to detect the destruction of ordinary M4-M8 grades according to GOST 111-90 and covered with protective polymer film, providing protection class A1-A3 according to RD 78.148-94 of the Ministry of Internal Affairs of Russia, glass thickness from 2.5 to 8 mm with an area of not less than 0.1 m2 (with the length of one of the sides of not less than 0.3 m) with the subsequent issuance of an alarm notification via two-wire communication line to the controller of two-wire communication line integrated security system "Orion". The detector is powered via a two-wire communication line. The detector provides: light indication of operating modes, address programming and two-way data exchange with the controller, test mode, discrete sensitivity adjustment, protection against unauthorised tampering.
