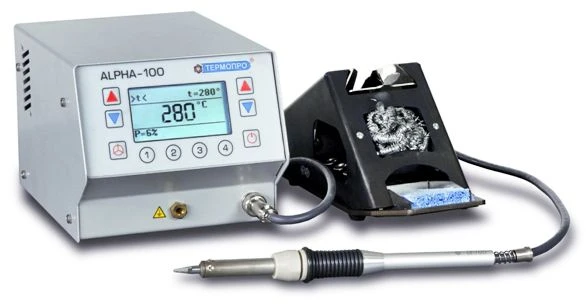

Soldering station single channel ALPHA-100 ~220 V

Manufacturer:
Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Key Highlights

  • Made in Russia - engineered for durability
  • Suitable for challenging environments
  • Lower cost of ownership than European alternatives
  • Bulk orders available with volume discounts
  • Documentation and customs clearance assistance provided
Dynamic temperature control technology is implemented by continuously and automatically changing the soldering iron power depending on the heat capacity of the solder contact, which it determines by calculating the rate of temperature deviation from the nominal temperature. Maintains feedback to the soldering iron by calculating the rate of tip temperature deviation. This is followed by a control action - instantaneous transfer of the optimum energy dose to the soldering iron. Small contacts are not overheated. Handle heating of over 40 degrees is prevented in the toughest operating modes. Large display, intuitive operation and advanced functionality.
Settings are password protected and can be quickly changed via a clear menu if required. The status of the parameters is indicated on the display by means of icons. 4 preset operating temperatures, accessible at 1 touch. Adjustable operating temperature range, temperature lock and power limitation.

Technical Specifications

Type of product according to PP RF 616 Electric hand tools
Weight 3 kg
Power 100 W
Equipment Control unit, fuse, power cable, soldering iron a-100, soldering iron stand, sponge, wrench, chip, magnet (2 pcs), screw M 4x3.
Assignment Used for soldering of high-temperature and voltage-sensitive radio-technical parts (microchips, transistors, capacitors, connectors).
Automatic adjustment of the working power of the soldering tool 0...100 %
Accuracy of heater temperature maintenance 1.5 °C
Наминальный диапазон температур 100...400 °C
Method of earthing a steel stand for holding a soldering iron Via cable and connector the cradle body is connected to the earthed body of the soldering station
Method of determining the presence of a soldering iron in a stand Movable tab closing contacts of the inbuilt switch
Product width without cable 180 mm
Product height without cable 135 mm
Product depth without cable 125 mm

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
