Soil corrosivity analyser modernised AKAG®

Aerosol and Solid Analysers

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

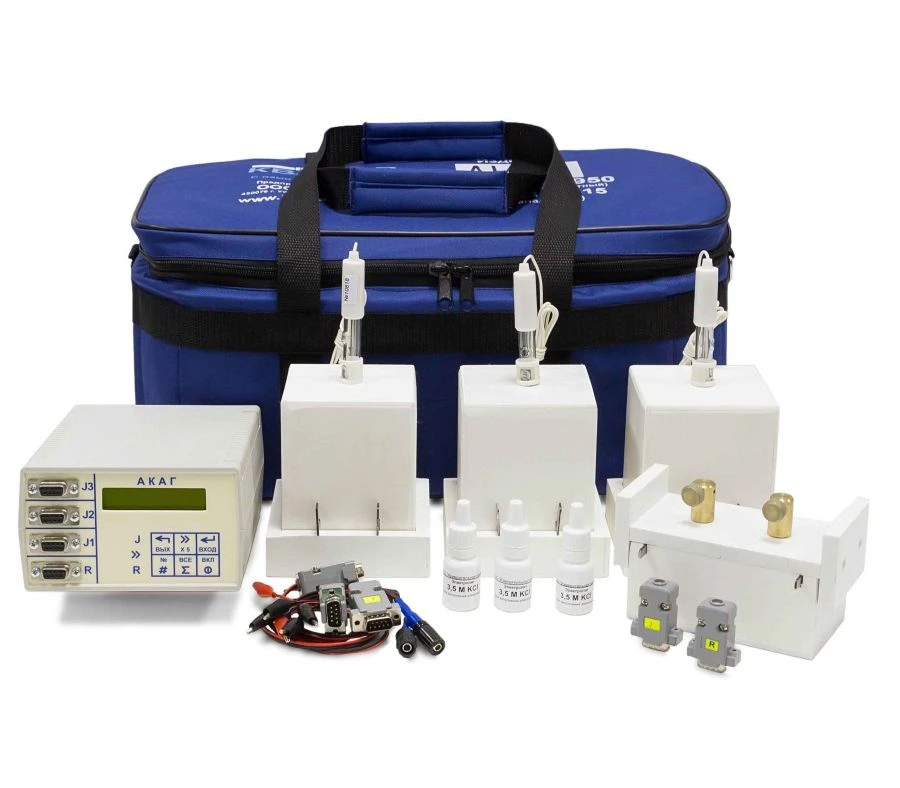

Soil activity analysers are designed for qualitative and quantitative assessment of soil corrosion aggressiveness to steel in places of laying underground structures, in particular steel pipelines, in accordance with GOST 9.602-2005 "Underground structures and general requirements for protection against corrosion". They measure soil moisture and soil ph. The device determines the soil resistivity and average current density for cathodic protection of carbon and low-alloy steel based on the analysis of soil samples placed in electrode cells. In addition, the value of protective potential (corrosion potential) of soil samples is determined. The instrument has a wide measuring range. The measurement procedures for analysing soil samples are performed automatically. Soil activity analyser AKAG® is made according to TU 4081-037-12719185-2013.

Technical Specifications

Values of errors correspond to	instrument operation errors at air temperature from +15 to +35°C at relative humidity not more than 80% (without taking into account additional error of electrode cells geometry) after preliminary warming up in switched-on state not less than 5 min.
Ground resistivity measurement limit	999 Ohmm with resolution of 1 Ohmm (resolution is equal to 1 ml. unit).
Accuracy of measurement of resistivity (RS)	Not more than ±2% of the measured value plus 1 ml. unit (0.1 Ohm*m)
Duration of soil RS analysis	Not more than 10 sec.
Cathodic current density (CCT) detection limit	500 mA/m2 with a resolution of 0.1 mA/m2 (1 ml. unit)

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
