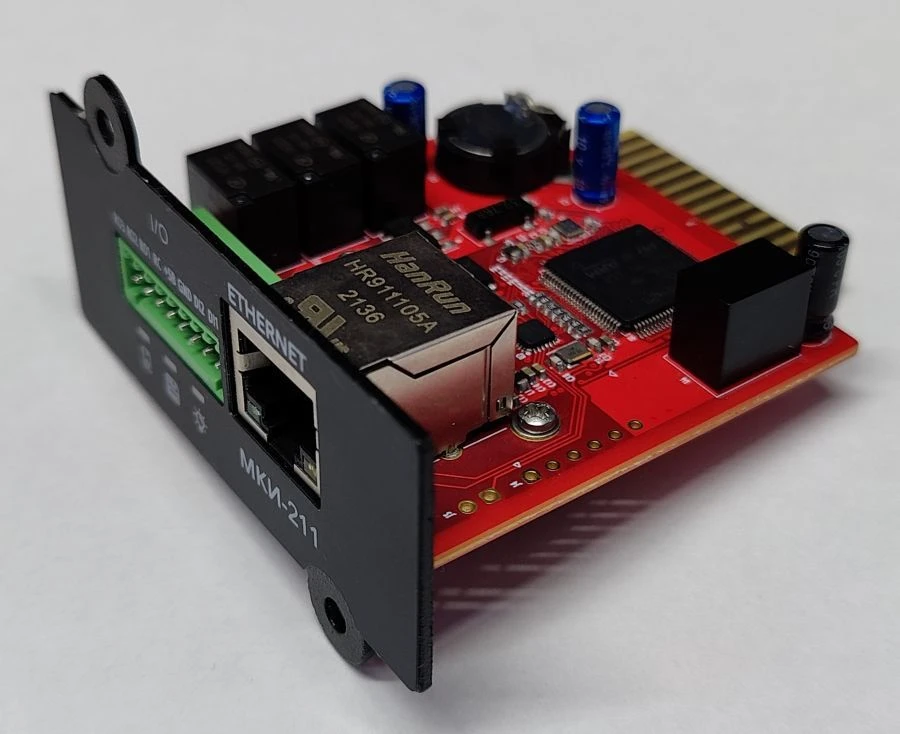

SNMP Remote Management Card for UPS - MKI-211 for Remote Monitoring

SNMP card IMPULSE MKI-211 is designed to provide remote management and monitoring of the UPS status via local area network (LAN) using SNMP, HTTP/HTTPS data exchange protocols and output relay (dry) contacts. In addition, the card supports the ability to connect an external pulse temperature sensor to provide the ability to measure the ambient temperature. Also with the help of discrete inputs can be registered logic level signal (3.3V) from the user or from external control devices.

The device is designed for installation in the expansion slot of single-phase UPS of the corresponding type. Data exchange between UPS and SNMP card is performed via RS232 interface using MegaTec Single Phase Communication Protocol Versions: 2.7..
