Available for Import

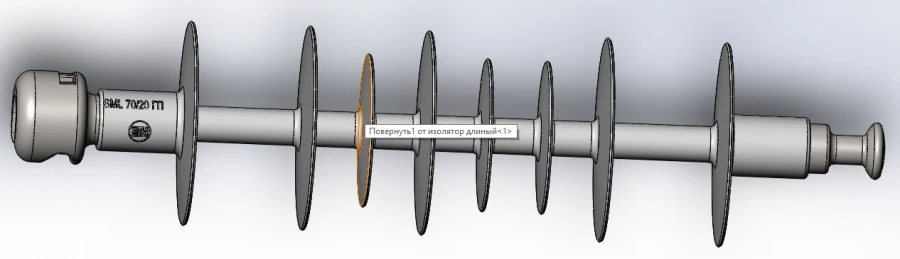

SML 70/35-3GP Polymer insulator
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Description
The insulators are designed for insulation and fastening of wires and lightning protection ropes of overhead power lines (hereinafter - overhead lines) and switchgear of switchgears of power stations and substations of alternating current with voltage up to 35 kV at ambient temperature from minus 60 °? to plus 50 °?, located at an altitude of up to 1000 m above sea level in areas with I-IV degree of pollution according to GOST 9920-89.
Specifications
Rated operating voltage
Built-in memory card slot, support microSD/SDHC/SDXC card (up to 256GB); manual recording/alarm recording kV
Leakage path length
410 mm
Destructive mechanical force in tension
70000
Section length
496 mm
Withstand voltage of industrial frequency in dry condition
105 kV
Withstand voltage of industrial frequency in the rain
95 kV
Withstand voltage of lightning impulse
200 kV
Delivery & Payment
Shipping Terms
Delivery Time
Sea freight: 30-60 days (depending on destination)
Air freight: 14-21 days (for urgent orders)
Payment Methods
Contact Us
Contact Our Import Specialists
