Available for Import
Small-size rotary installation MPU-8 SPAN.402111.009
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Description

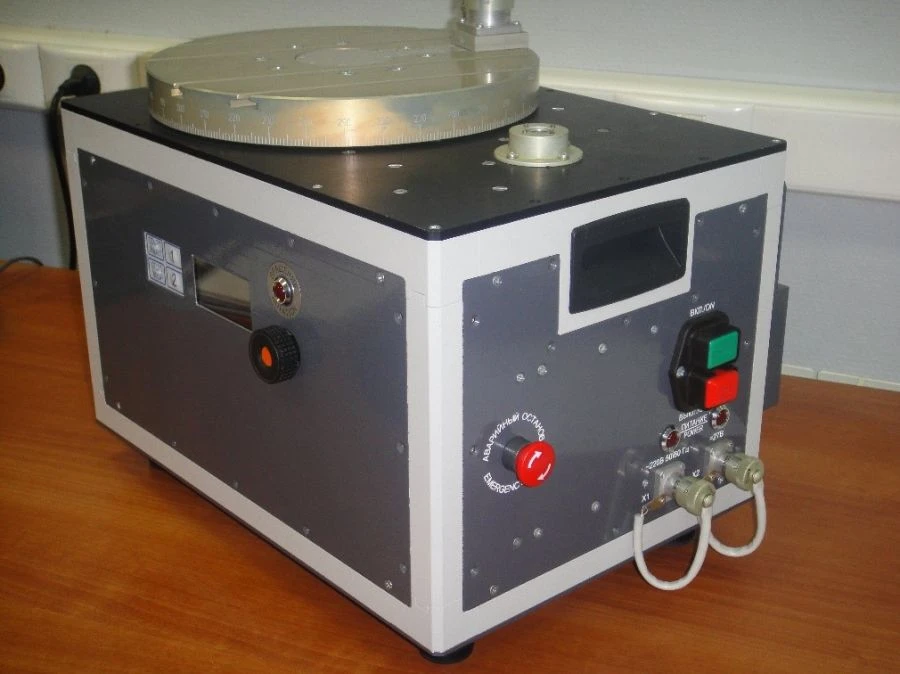

Small-size rotary installation MPU-8 provides rotation of the equipment fixed on the platform weighing up to 20 kg with angular velocities from 0,03 to 150 deg./s in the horizontal or vertical plane. MPU-8 is designed for testing of angular velocity sensors.
Specifications
AC (50 Hz) or DC supply voltage
27 V
Power consumption
300
Length
455 mm
Width
325 mm
Height
365 mm
Weight of rotary unit
25 kg
Maximum permissible load on the turntable
20 kg
MPU-8 is registered in the State Register of Measuring Instruments of the Russian Federation. Number of certificate of type appr
68672...17
Angular velocity reproduction range
0.03...150
Tolerable relative error limits of angular velocity reproduction
1 %
Instability of angular velocity reproduction
2 %
Number of electrical lines switched by the turntable slipformer
24 pc
Maximum current in turntable slip ring circuit
4.75 A
Assigned service life
15 a
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
