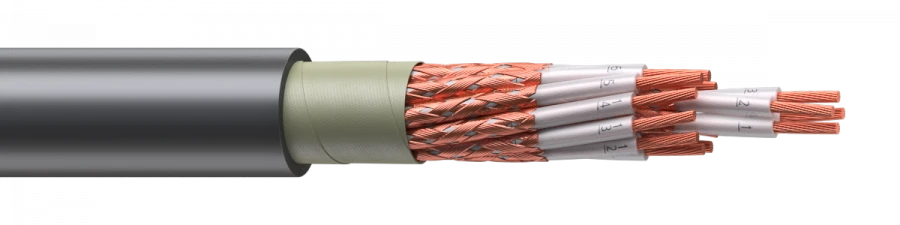

Small-size KMPEVng(A)-LS cables
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Description
Cables small-sized copper conductors, with polyethylene insulation and with sheaths made of polyvinylchloride plasticate of reduced fire hazard, including with a screen on the insulation, including in a common screen on the sheath, including with a common screen under the sheath, designed for the transmission and distribution of electrical energy and electrical signals in stationary installations for rated alternating voltage of 500 and 1000 V frequency 50 Hz or at a constant voltage of 750 and 1500 V, respectively.
Service life is not less than 30 years at operation in the temperature range from minus 50 to +50°C..
Service life is not less than 30 years at operation in the temperature range from minus 50 to +50°C..
Specifications
Core material
Copper stranded
Insulation material
polyethylene
Twisting
insulated conductors are twisted
Individual screen
braid of copper or tinned copper wires
Separation layer
mica tape wrapping
Outer shell
PVC plasticate of reduced fire hazard;
Section
0.35...1.5 mm2
Number of cores
2 to 52
Rated AC voltage
1000 V
Climatic version
UHL and T, placement categories 1-5 according to GOST 15150
Application
The cables are designed for operation in cable constructions and premises, including for nuclear power facilities in AC systems of classes 3 and 4 according to NP-001 classification.
Fire safety class
according to GOST 31565: P1b.8.2.2.2.2.
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
